Bulkhead Mount MCX Female to MMCX Female RF Connector Adapter
MCX series RF coaxial connector is apply to the equipment which have the requirement of weight and volume, the operation frequency can reach 6GHz, use plug-in design, the interface size is similar with SMB, but the volume is approximately 30% smaller, contact is more reliable, connect is faster, which can meet the requirement of digital communication intensively and miniaturized.
MMCX series is a kind of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight. Applications of the MMCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.

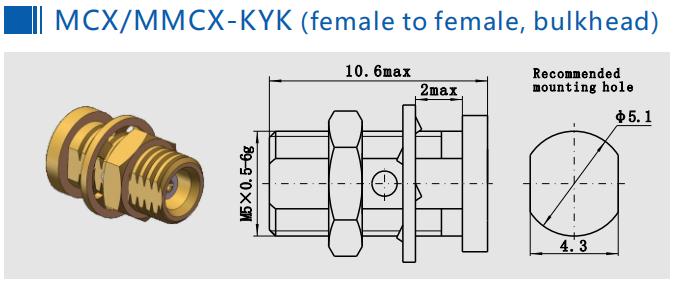

Outline Drawing and Picture(mm)
Related Products

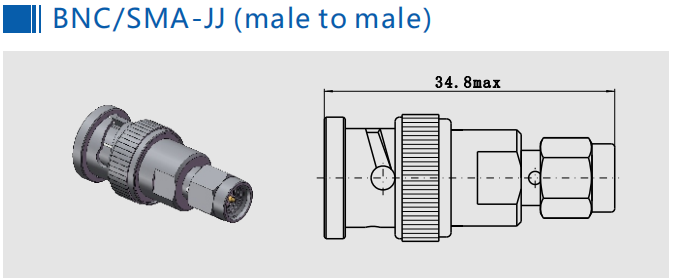

1.
| Mode No. | Description |
| BNC/SMA-KK | BNC male to SMA male adapter |
2.
| Model No. | Description |

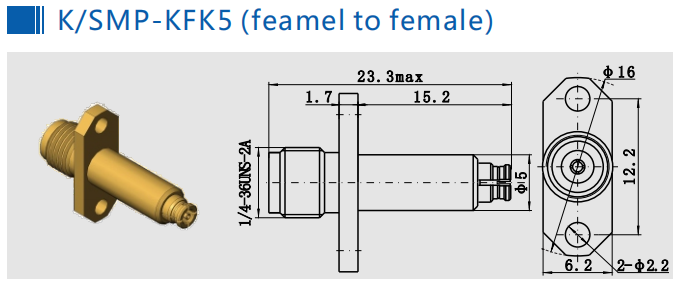

| K/SMP-KFK5 | K female to SMP female adapter |

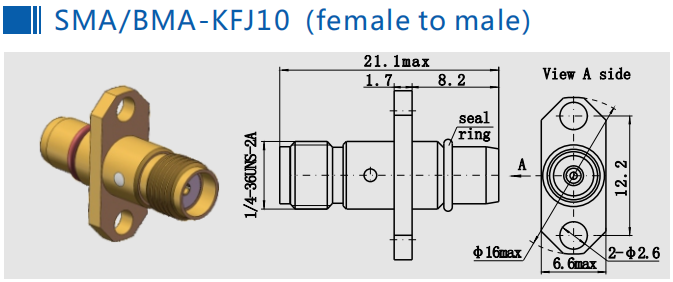

3.
| Model No. | Description |
| SMA/BMA-KFK11 | SMA Female to BMA female adapter |

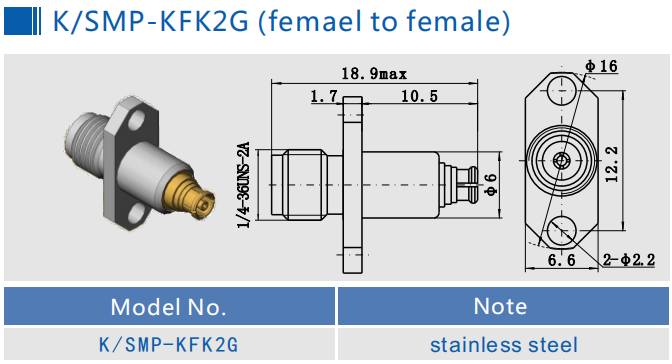

4.
| Model No. | Description |
| K/SMP-KFK2G | stainless steel |
5.

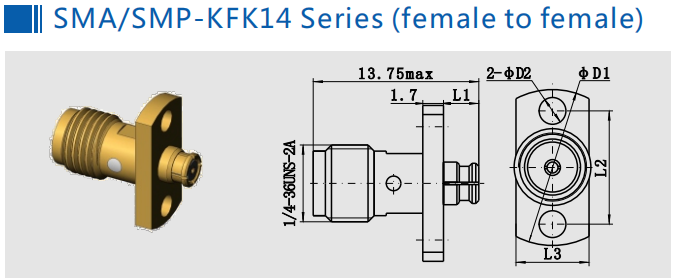

| Model No. | L1 | L2 | L3 | D1 | D2 | Note |
| SMA/SMP-KFK14 | 2.9 | 9.3 | 6 | 12.8 | 2.2 | |
| SMA/SMP-KFK26 | 2.8 | 8.6 | 6 | 11.8 | 1.9 | |
| SMA/SMP-KFK29 | 2.9 | 9.4 | 5.5 | 13.8 | 2.2 | |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|

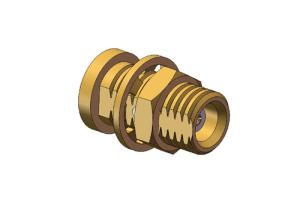

PTFE Female to Female MCX to MMCX RF Adapter Images
|
