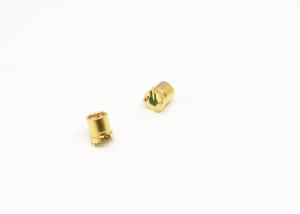

Right Angle Mini SMP Connector Solder Mount CSMP Male Coaxial Connector

Name: Right Angle Mini SMP Connector Solder Mount CSMP Male Coaxial Connector
Brand: ELT (Elite)
Price: 1 USD

China Right Angle Mini SMP Connector Solder Mount CSMP Male Coaxial Connector wholesale

Brand Name : ELT (Elite)

Model Number : CSMP-JWHD32-S

Certification : CE ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1,000,000pcs per month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : CSMP Connector

Rated Voltage : 170VRMS*

Material : Brass

Plating : Gold Plated

Impedance : 50Ω

Frequency Range : DC~50GHz

Gender : Male

Lifespan : 500Cycles

Contact Now

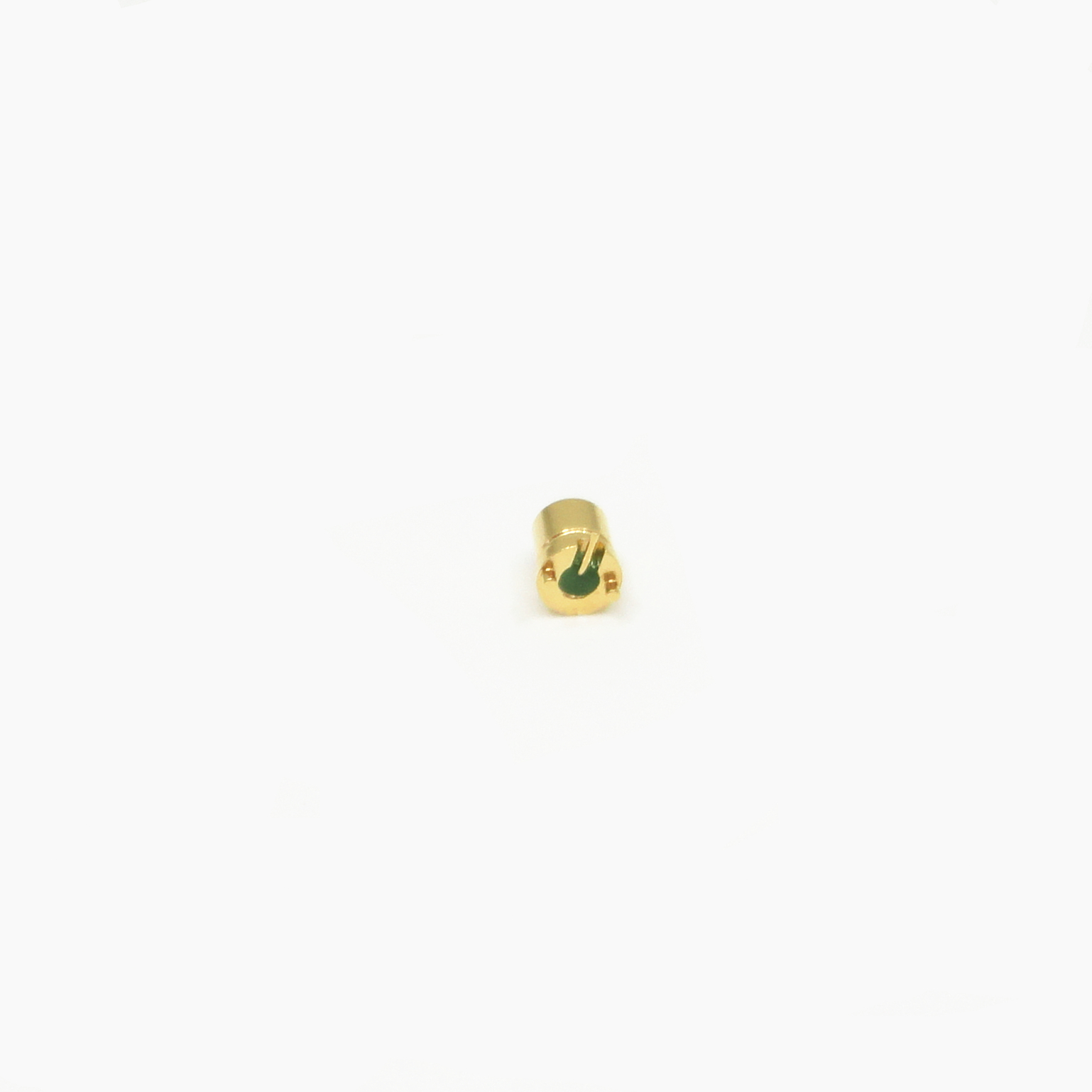

Mini SMP Connector Right Angle Solder Mount CSMP Male Coaxial Cable Connectors

CSMP is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with SSMP),light weight,wide working broadband,etc. Apply for the couple usage of board to board connectors,for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.

Features

Avionics, radars
Missiles and guidance systems
On-board equipment
Telecommunication systems

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

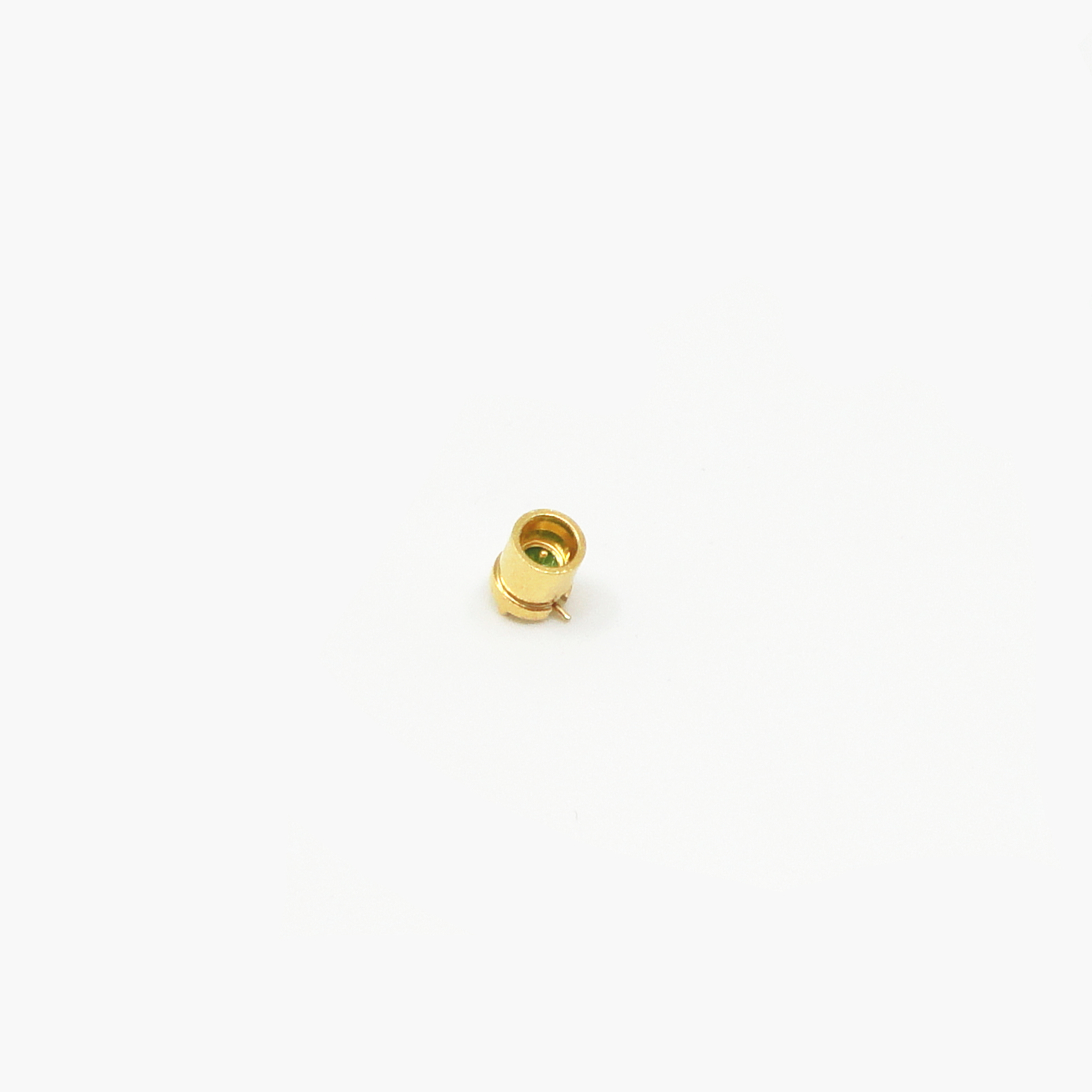

Right Angle Mini SMP Connector Solder Mount CSMP Male Coaxial Connector

Application:

* Satcom

* Network

* Computer/LANs

* Base Station

* Outdoor facilities

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Radio, TV aerial system

Product Cataloge:

RF Adapter

Waveguide To Coaxial Adapter

TNC RF Connector

N Type RF Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

J30J Series Connector

Glass-to-metal Hermetic Seals

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:

* Standard Export Carton
* According to your requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.

Related 65GHz CSMP male hermetically sealed connector:

Right Angle Mini SMP Connector Solder Mount CSMP Male Coaxial Connector

Model number	L	Description

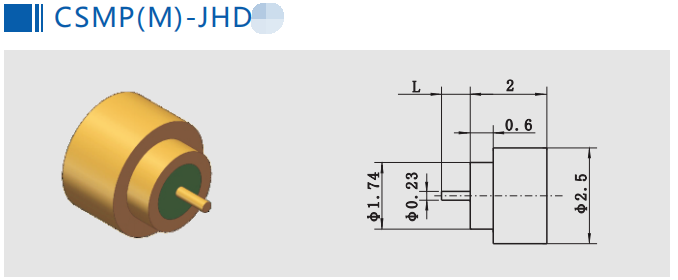

CSMP(M)-JHD	0.75	CSMP male full detent hermetically sealed connector
CSMP(M)-JHD-S	0.75	CSMP male smooth bore hermetically sealed connector
CSMP(M)-JHD24	1.2	CSMP male full detent hermetically sealed connector

Right Angle Mini SMP Connector Solder Mount CSMP Male Coaxial Connector

Model number	Description

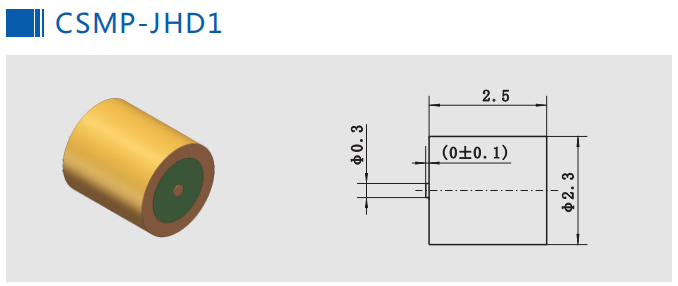

CSMP-JHD1	CSMP male full detent hermetically sealed connector
