Brass K type to SMP 2 Holes Flange Mount Female to Female RF Connector Adapter
K series(2.92 type) connector, this series product is a common used millimeter wave connector, the frequency is 40GHz, it can mate and interchange with SMA series, K series connectors. It have the advantages of small volume, light weight, high use frequency, reliable connect.
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with braking). Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors.
Outline Drawing and Picture(mm)
| Model No. | Note |
| K/SMP-KFK4 | K 2.92mm Female to SMP Female Adapter |
Related Products
1.
| Mode No. | Description |

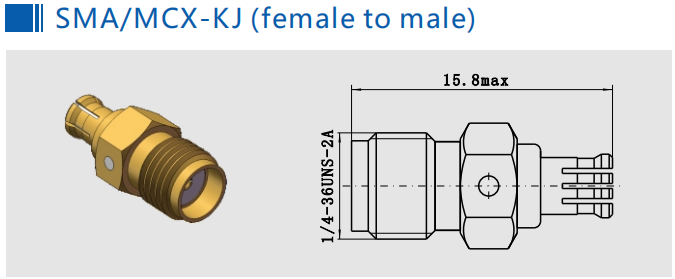

| SMA/MCX-KJ | SMA Female to MCX Male |
2.
| Model No. | Description |
| K/SMP-KFK5 | K female to SMP female adapter |
3.
| Model No. | Description |

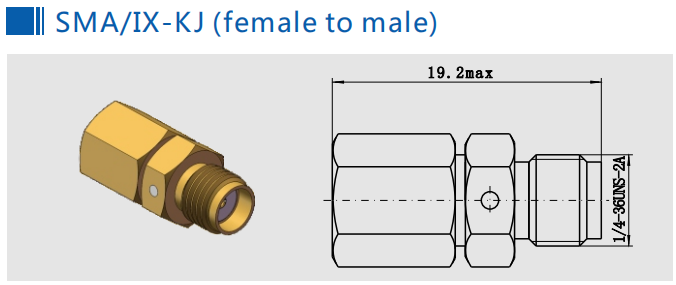

| SMA/IX-KJ | SMA Female to IX male adapter |
4.
| Model No. | Description |
| K/SMP-KFK2G | stainless steel |
5.
| Model No. | Note |
| SMA/SMP-KYK15 | Axial float 1.0mm max,can be compressed to 20.7mm |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
