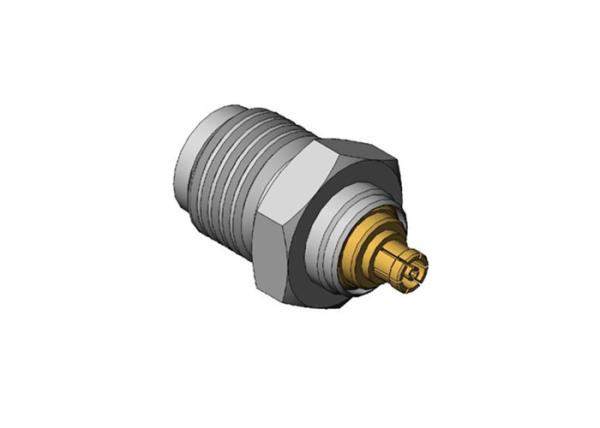

2.4mm Female to Mini SMP Female Brass Gold Plated Adapter
2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
Mini SMP connector is also called SMPM, SSMP connector. It's a miniature push-on RF coaxial connector, which have the characters of small volume (compared with SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors, for the situation of modular intensive mounting, and the plug has two interface form with full detent and smooth bore.

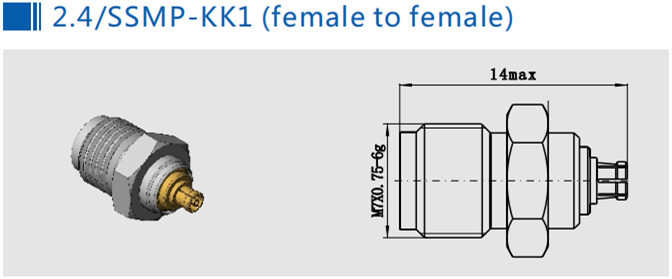

Outline Drawing and Picture(mm)
Note:The specific data of the model are based on the data in the product specification sheet.
| Model No. | Note |
| 2.4/SSMP-KK1 | Stainless Steel |
