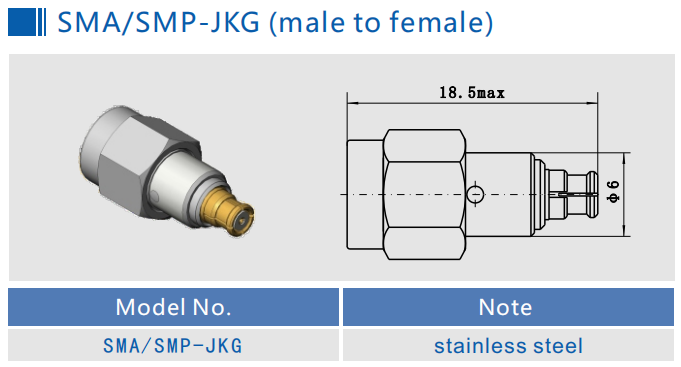

50Ohm Stainless Steel SMA Female to SMP Male Adapter
SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30 GHz (Our SMP coaxial RF connectors can reach up to 40 GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 GHz.
Outline Drawing and Picture(mm)
1.
| Mode No. | Note |

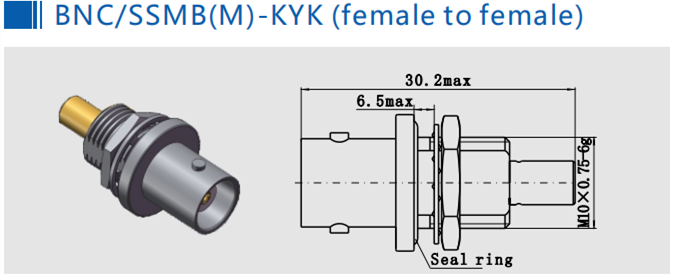

| BNC/SSMB(M)-KYK | hermetically sealed,bulkhead |
2.
| Model No. | Note |

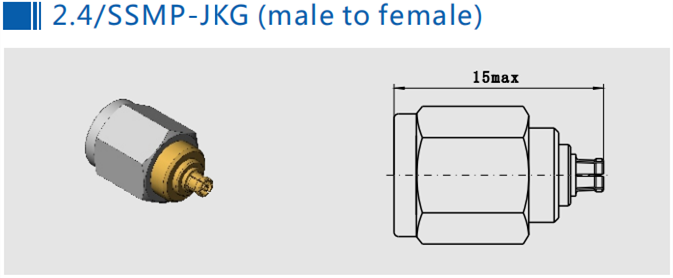

| 2.4/SSMP-JKG | stainless steel |
3.
| Model No. | Description |

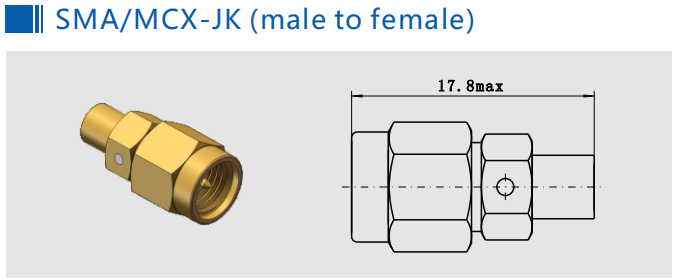

| SMA/MCX-JK | SMA male to MCX female adapter |
4.
| Model No. | Description |

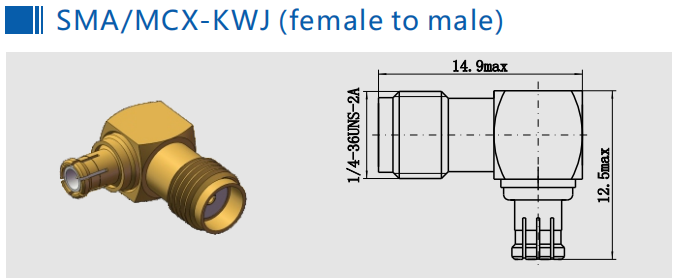

| SMA/MCX-KWJ | SMA female to MCX male right angle adapter |
5.
| Model No. | Description |

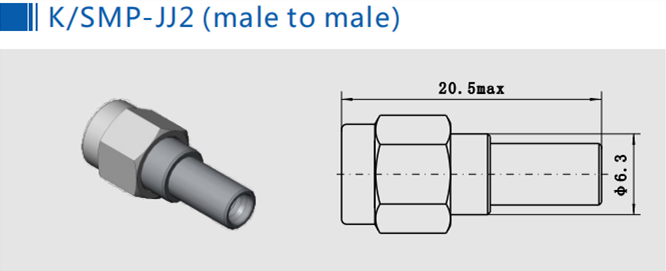

| K/SMP-JJ2 | K male to SMP male adapter |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|

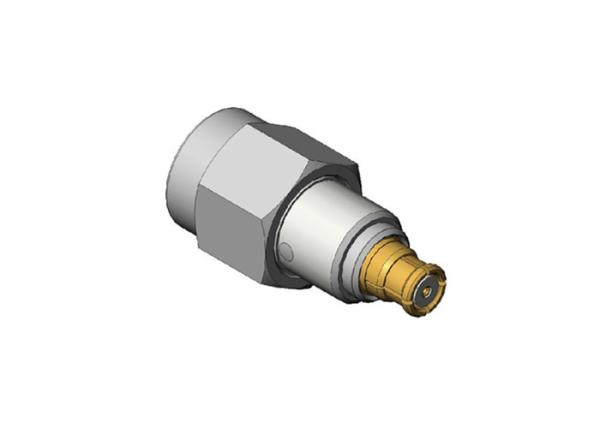

Passivated Stainless 50Ohm SMA to SMP RF Adapter Images
|
