50Ohm Brass Straight RF Adapter SMA Female to SMP Female Adapter
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 GHz.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30GHz (Our SMP coaxial RF connectors can reach up to 40GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS* |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥2000MΩ |
| Contact Resistance | ≤4mΩ |

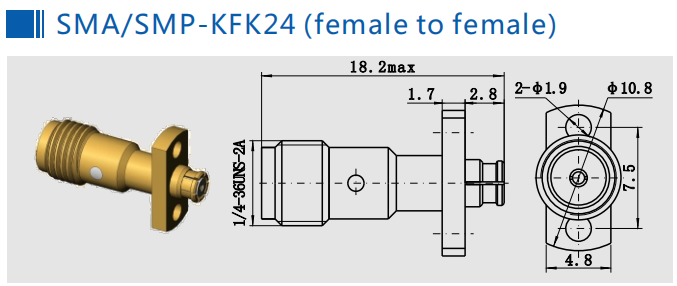

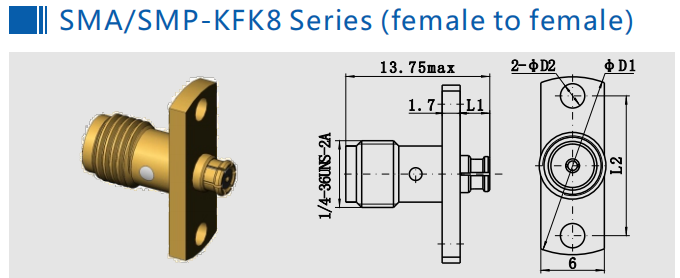

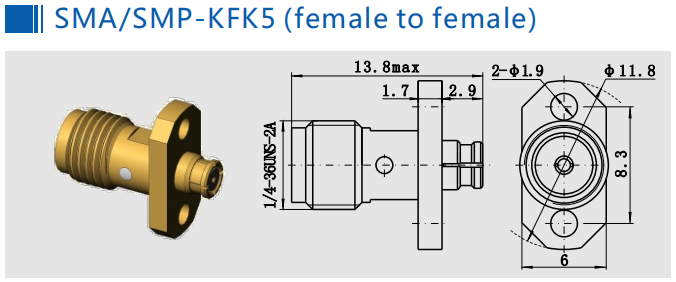

Outline Drawing and Picture(mm)
Other Adapter:
1.
| Mode No. | Description |
| SMA/SMP-KFK1 | SMA Female to SMP Female adapter |
2.
| Model No. | Description |
| SMA/SMP-KFK2 | SMA female to SMP female adapter |
3.
| Model No. | Description |
| SMA/SMP-KFK5 | SMA female to SMP female adapter |
4.
| Model No. | L1 | L2 | D1 | D2 | Note |
| SMA/SMP-KFK8 | 2.9 | 10.2 | 13.6 | 1.9 | |
| SMA/SMP-KFK9 | 2.8 | 13.2 | 16.8 | 2.3 | |
5.
| Model No. | Note |
| SMA/SMP-KFJ2G | SMP end is limited detent interface depth is 2.79mm |
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|

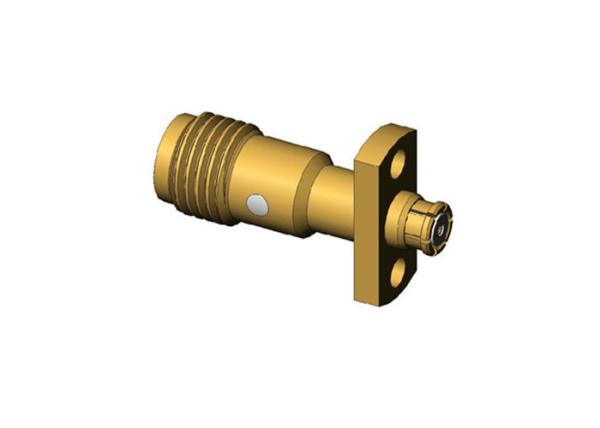

SMA to SMP 50Ohm 18GHz Brass Straight RF Adapter Images
|
