Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

Name: Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Brand: ELT (Elite)
Price: 1 USD

China Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance wholesale

Brand Name : ELT (Elite)

Model Number : SMA/SSMC-KJ

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs per week

Delivery Time : within 3 weeks

Packaging Details : Standard Export Carton

Product Name : SMA Female to SSMC Male RF Adapter

Application : RF

Type : Adapter

Gender : Male to Female

Impedance : 50Ω

Material : Brass

Plating : Gold Plated

Insulator : PTFE

Contact Now

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50 Ohm

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 6GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

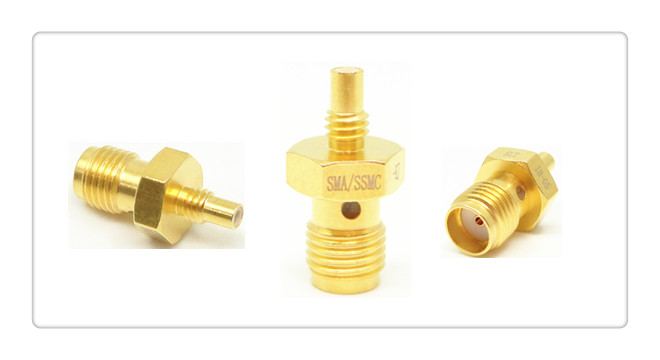

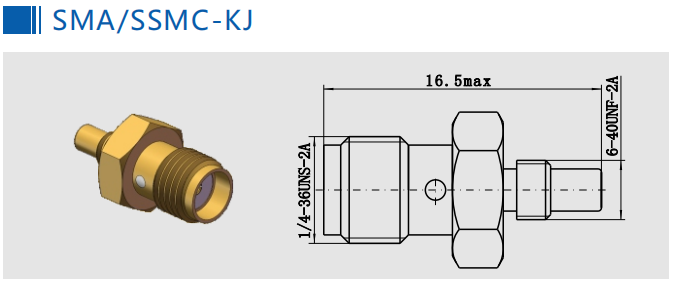

Outline Drawing and Picture of SMA Female to SSMC Male Adapter:

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

Application:

- Wireless
- Antennas

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Other SMA Male Female to SSMC Male Female RF Adapter:

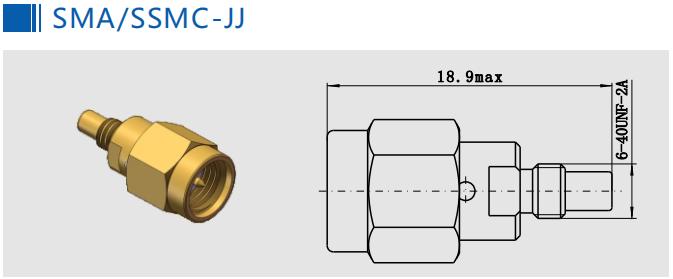

1. SMA/SSMC-JJ : SMA Male to Female Adapter

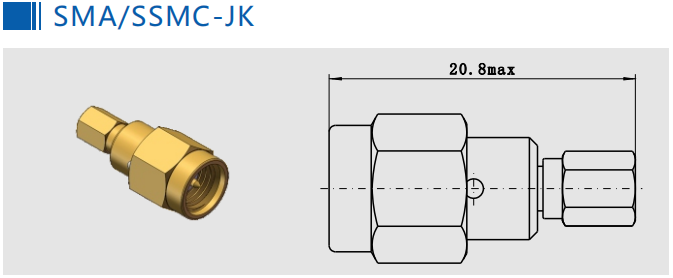

2. SMA/SSMC-JK: SMA Male to Female Adapter

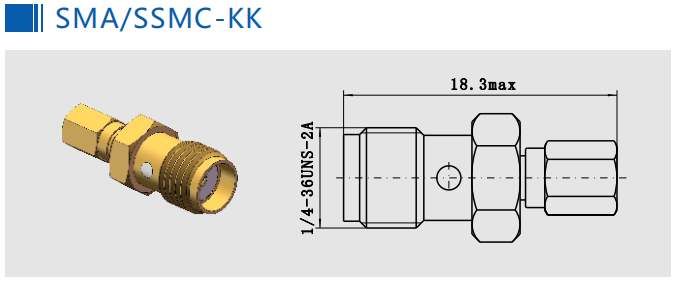

3. SMA/SSMC-KK: SMA Female to Female Adapter

Between Series Adapter list:

Types	Description
SMA/SSMA	SMA male/female to SSMA male/female adapter
SMA/SMP	SMA male/female to SMP male/female adapter
RPSMA/SMA	RP SMA male/female to SMA male/female adapter
SMA/BMA	SMA male/female to BMA male/female adapter
BNC/SMA	BNC male/female to SMA male/female adapter
SMA/SMB	SMA male/female to SMB male/female adapter
N/SMA	N type male/female to SMA male/female adapter
TNC/SMA	TNC male/female to SMA male/female adapter
N/BNC	N Type male/female to BNC male/female adapter
SMA/SSMC	SMA male/female to SSMC male/female adapter
N/3.5	N Type male/female to 3.5mm male/female adapter
SMA/MCX	SMA male/female to MCX male/female adapter
ODM	ODM type is available

NOTE:
We have over 10,000 types of Adapters, if the connector you are using is not found, please contact us with your details.
