50Ohm Gold Plated RF Coaxial Adapter SMA Male to SMB Female Adapter

Brand Name : ELT

Model Number : SMA/SMB-JK

Certification : CE ROHS

Place of Origin : China

MOQ : 100 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product : RF Adapter

Plating : Gold Plated

Impedance : 50Ω

Gender : Female,Male

Model : SMA/SMB-JK

Application : RF

Contact Now

50Ohm Gold Plated SMA Male to SMB Female RF Coaxial Adapter

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Specification:

Electrical Characteristics
Impedance		50Ω
Frequency Range		DC-18GHz
Rated Voltage		335VRMS*
Dielectrics Voltage-resistance		1000VRMS*
Insulation Resistance		≥5000MΩ
Center Resistance		Center Conductor	≤3.0mΩ
		Outer Conductor	≤2.0mΩ
VSWR		≤1.2
Material & Mechanical Characteristics
Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Shell and other Metal Parts		Brass Gold plated
Durability		500 cycles
Insulators		PTFE

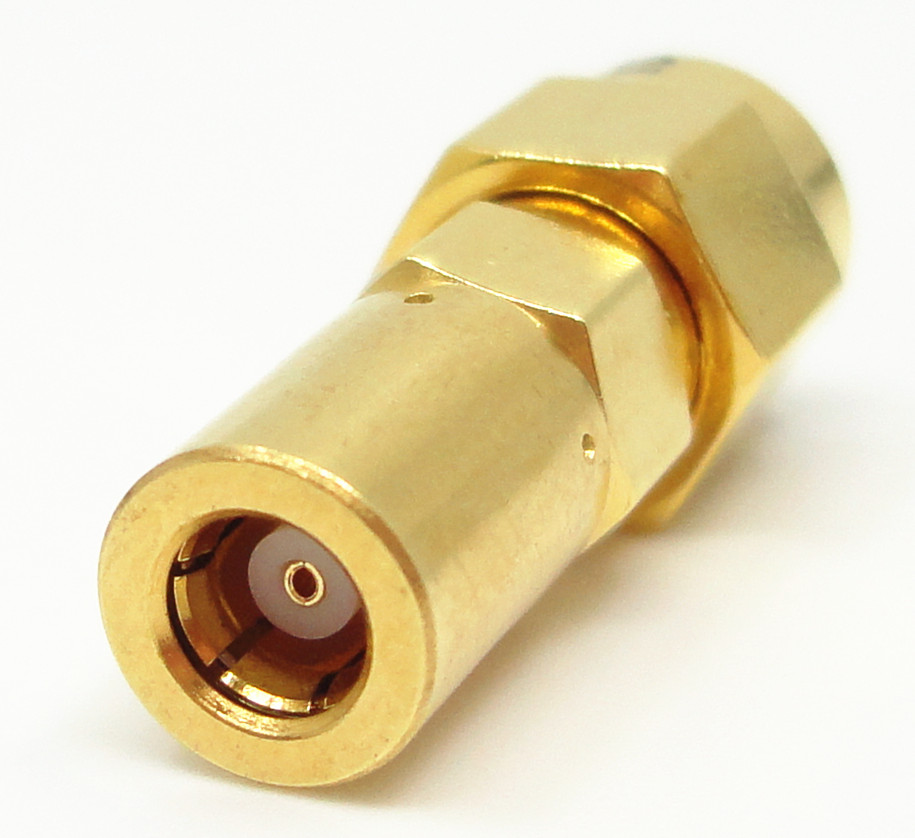

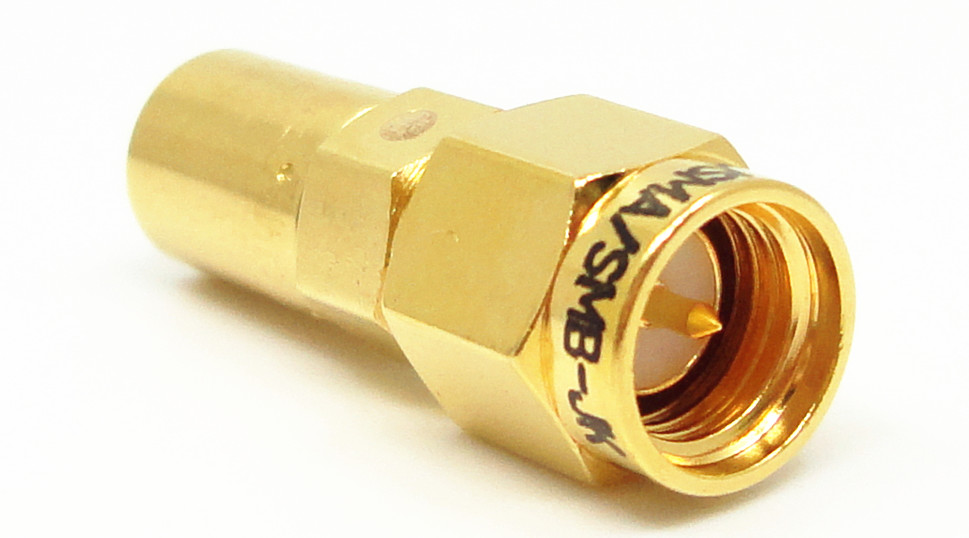

Detailed Images:

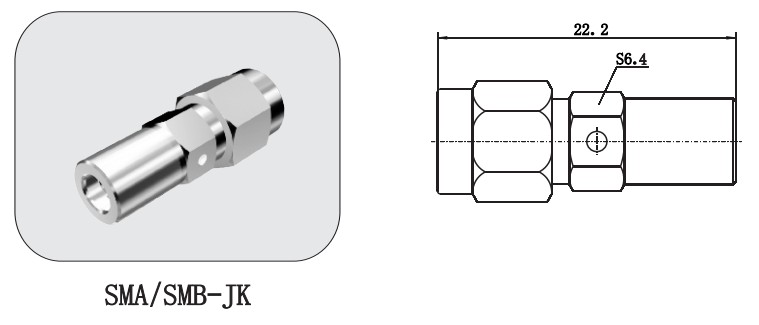

Unit: mm

50Ohm Gold Plated RF Coaxial Adapter SMA Male to SMB Female Adapter

Model No.	Description
SMA/SMB-JK	Gold plated brass SMA male to SMB female adapter

50Ohm Gold Plated RF Coaxial Adapter SMA Male to SMB Female Adapter

Between Series Adapter list:

Types	Description
SMA/SSMA	SMA male/female to SSMA male/female adapter
SMA/SMP	SMA male/female to SMP male/female adapter
RPSMA/SMA	RP SMA male/female to SMA male/female adapter
SMA/BMA	SMA male/female to BMA male/female adapter
BNC/SMA	BNC male/female to SMA male/female adapter
SMA/SMB	SMA male/female to SMB male/female adapter
N/SMA	N type male/female to SMA male/female adapter
TNC/SMA	TNC male/female to SMA male/female adapter
N/BNC	N Type male/female to BNC male/female adapter
SMA/SSMC	SMA male/female to SSMC male/female adapter
N/3.5	N Type male/female to 3.5mm male/female adapter
SMA/MCX	SMA male/female to MCX male/female adapter
ODM	ODM type is available

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(Micro D-sub, MDM)
6. Glass-to-metal Hermetic Seals, Headers, Feedtru(RF & DC)
7. ODM Products

Packaging Details:
* Standard Export Carton
* According to your requirements

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
