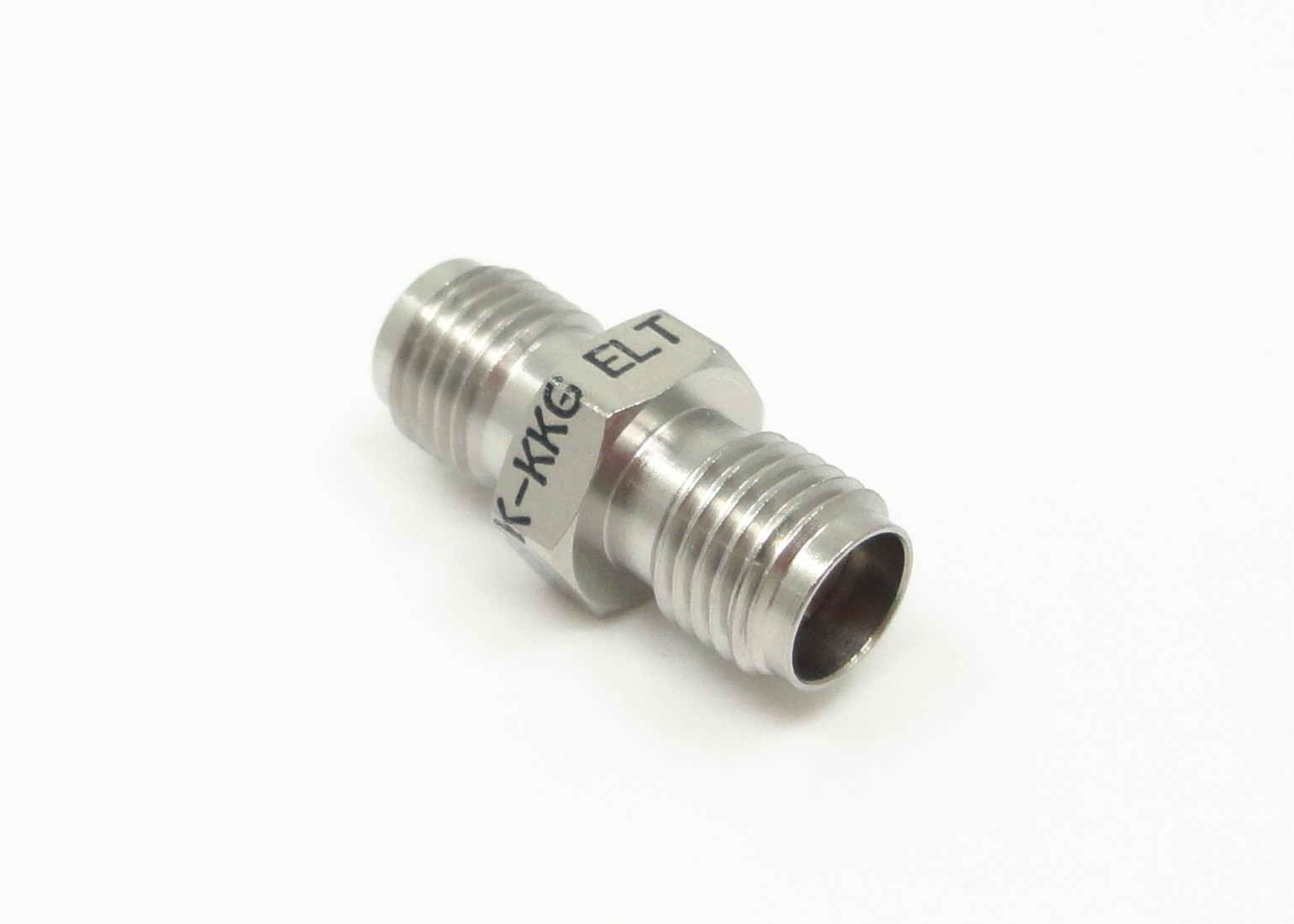

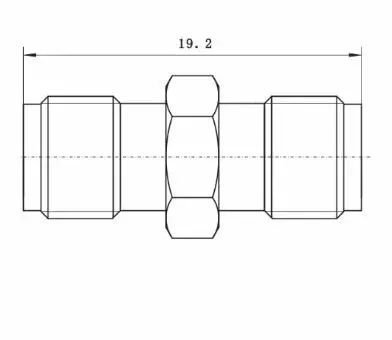

Nickel Plated Stainless Steel MMW 3.5mm Female to K(2.92mm) Female Adapter
K-type millimeter wave connectors, also called 2.92mm MMW connectors are one of the most common millimeter wave connectors with broad frequency range upto 40GHz. They can be mated with SMA and 3.5mm connectors.
These K-type (2.92mm) MMW connectors adopt air interface, which makes them small in size, light in weight and very reliable in connection, etc.
3.5 series is a common used millimeter wave connector, the frequency is 33 GHz (up to 36 GHz), use air interface, can mate and interchange with SMA series, K series connectors, With advantages of great bandwidth, high reliability,it is widely used in microwave measurement and millimeter wave devices.
The high precision 50 ohm coaxial 3.5mm to 2.92mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio
VSWR | ≤1.25 |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
• The 3.5mm to 2.92mm RF adaptor is a precision microwave connectors.
• Stainless steel construction
• Superior electrical performance to 40 GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Connector mating interface per MIL-STD-348
• Great for applications that require high frequency transmission
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
