SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz

Brand Name : ELT

Model Number : SSMA-KYD21

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 50 pieces

Price : The price depend on the quantity

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : 8-12 weeks for new production

Packaging Details : 1pcs/plastic bag;100pcs/carton

Product Name : Straight SSMA Female Bulkhead Microstrip Connector

Model : SSMA-KYD21

Frequency Range : 0.3MHz-18GHz

Impedance : 50Ω

Rated Voltage : 250v

DWV : 750V

Insulation Resistance : ≥5000MΩ

Center Conductor : Copper Alloy, Gold Plated

Outer Conductor : Copper Alloy, Gold Plated

Mount Method : Bulkhead Screw

Insulators : PTFE

Samples : Available，In Stock

Contact Now

Straight SSMA / Mini SMA Female RF Coaxial Connector Bulkhead Mount Up to 18GHz

Product Specifications

Items	Value
Product Name	Straight SSMA Female Bulkhead RF Coaxial Connector
Model	SSMA-KYD21
Frequency Range	0.3MHz-18GHz
Impedance	50Ω
Rated Voltage	250v
DWV	750V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated
Mount Method	Bulkhead Screw
Insulators	PTFE

Product Overview

Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.

Frequency Operation up to 30GHz Capable of operating at frequencies up to 30GHz, SSMA connectors are suitable for a wide range of high-frequency applications. This high-frequency operation allows for versatile use in advanced communication systems and RF applications.

Feature	Description
Size	Compact (70% the size of traditional SMA connectors)
Frequency Bandwidth	Wide frequency bandwidth (DC~18GHz)
Performance	Superior mechanical and electrical performance
Reliability	High reliability in demanding applications
Threaded Standard	10-36UNF-2
Impedance	50Ω
Frequency Operation	Up to 18GHz
Mounting Structures	Right angle flange, straight flange, right angle PCB solder, straight PCB solder, bulkhead screws connect

SSMA RF Coaxial Connectors Interface Dimensions

SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz

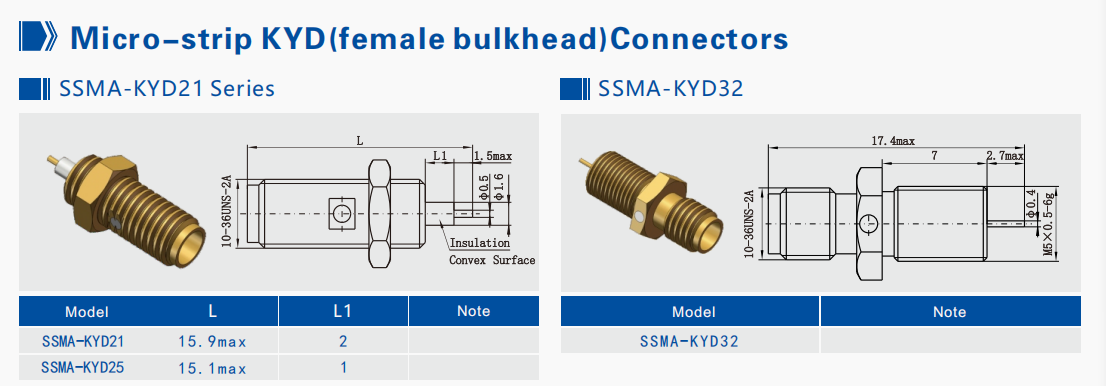

SSMA / Mini SMA Bulkhead RF Coaxial Microstrip Connector Dimensions

Outline dimensions for the SSMA-KYD21 (Unit: mm).

SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz

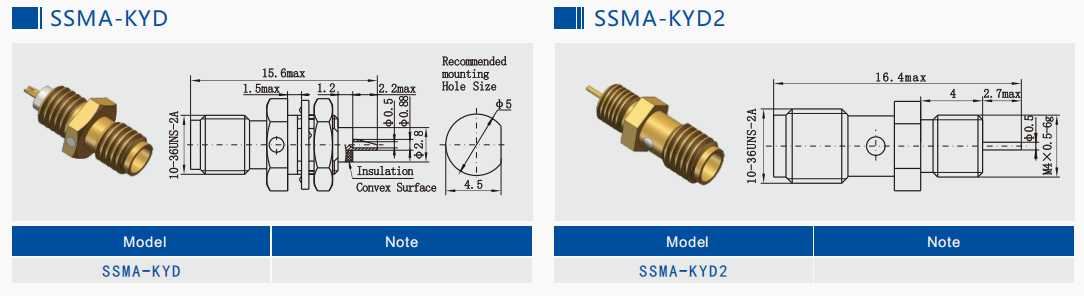

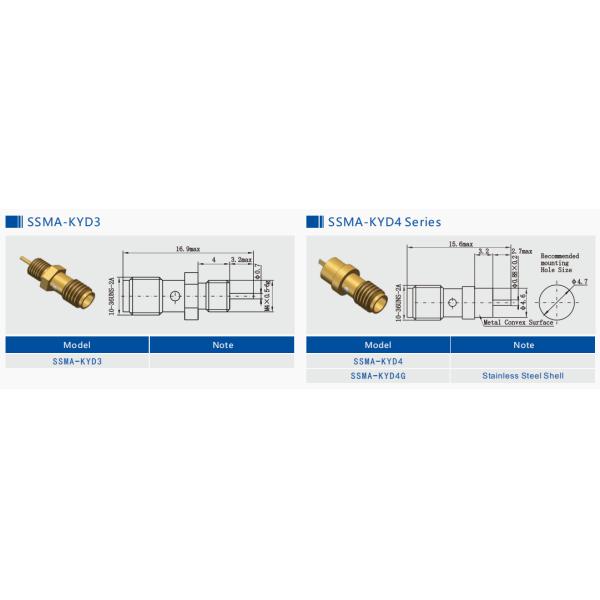

Other Model SSMA Female Bulkhead RF Coaxial Microstrip Connectors:

SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz

Applications

Ideal for high-precision microwave signal transmission in:

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.

Packaging & Shipping

Packaging: Each SSMA bulkhead microstrip connector is carefully packaged in protective cartons to ensure safe transit. SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz

Shipping: We use reliable courier services with tracking numbers provided for all shipments.

Note: For other similar SSMA bulkhead microstrip models, please contact us for our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
