TNC Hermetic Female Right Angle 4-Hole Flange RF Connector for Microstrip Applications
The TNC series product is a threaded iteration of the BNC connector, distinguished by its screw threads for secure mating. These compact, waterproof units feature a constant 50-ohm impedance and operate within the DC-11 GHz frequency range. There are two variants of TNC connectors: standard and reverse polarity. Although these low-cost connectors are typically constructed from die-cast and molded components, their performance does not rival that of industrial or military-grade products. However, they are highly suitable for various commercial applications. Widely employed in antenna connections, TNC connectors find extensive use in avionics, defense, communications, and general industrial markets. Reverse polarity and 75-ohm versions of the TNC connector are also available.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~4GHz |
| Rated Voltage | 2500VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MΩ |
| Contact Resistance | Outer conductor | ≤6mΩ |
| Center conductor | ≤1.5mΩ |
| VSMR | ≤1.3 |
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Un-Coupling Force | 13.6N max |
| Mating Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |

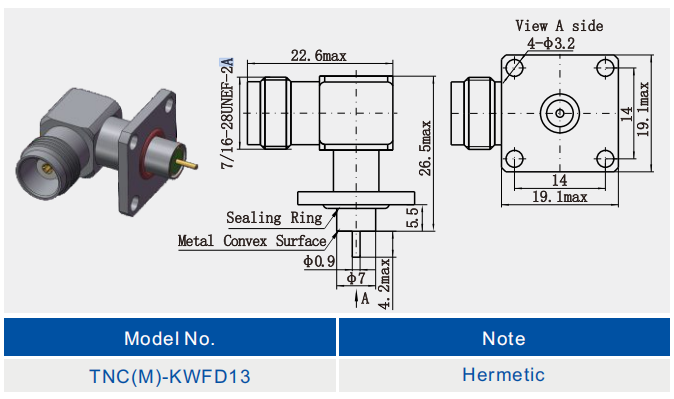

Outline Drawing:
Features:
1. Connector Type:
TNC type connector for radio frequency (RF) applications.
2. Interface Type:
Hermetic Female (sealed female interface), provides good protection.
3. Angle Design:
Right Angle design for easy installation in equipment where space is limited.
4. Mounting Style:
4-hole Flange for solid mechanical mounting.
5. Transmission Line Type:
Microstrip for high frequency signal transmission.
Application:
Wireless Communication Equipment
Radar Systems
Microwave Equipment
Test and Measurement Equipment
Aerospace Applications
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
