TNC Right Angle 4-hole Flange Female RF Coaxial Connector for CXN3506/MF108A
The TNC series product is a threaded variant of the BNC connector, distinguished by its screw threads for mating. These miniature, threaded, and waterproof RF connectors maintain a consistent 50-ohm impedance and are designed to operate within the DC-11 GHz frequency range. There are two main types of TNC connectors: standard and reverse polarity. Constructed primarily from die-cast and molded components, these cost-effective connectors are well-suited for a broad spectrum of commercial applications, although their performance may not match that of industrial or high-performance grade products. TNC connectors are widely used for antenna connections and have many applications in radar, wireless, communications, and general industrial markets. Additionally, reverse polarity and 75-ohm versions of the TNC connector are also available.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~4GHz |
| Rated Voltage | 2500VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MΩ |
| Contact Resistance | Outer conductor | ≤6mΩ |
| Center conductor | ≤1.5mΩ |
| VSMR | ≤1.3 |
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |

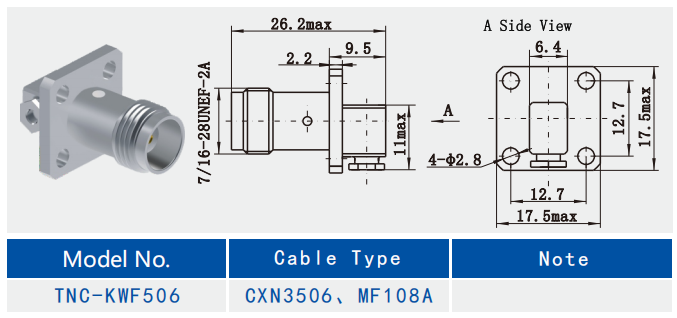

Detailed Drawing
Features:
1. High mechanical strength and durability: usually made of brass or stainless steel, the surface treatment may include nickel-plated or gold-plated, can withstand hundreds of times of plugging and unplugging operations without easy damage, but also can withstand a certain degree of tensile force and pressure, suitable for a variety of harsh environments.
2. Good waterproof performance: the connector part adopts a sealed structure with good waterproof performance, suitable for outdoor and other humid environments.
Application:
1. Satellite navigation measurement antenna: In the scenarios of geodetic surveying and mapping, oceanographic surveying, waterway surveying, dredging surveying, seismic monitoring, bridge deformation monitoring, landslide monitoring, and automatic operation of wharf, etc., TNC connector connects the satellite navigation measurement antenna with the external equipment, transmits the wireless signals and supplies power.
2. Aerospace field: Aviation control: In the aviation control system, TNC female connectors are used for the connection of related radio equipment to ensure the accuracy and reliability of aviation communication.
NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
