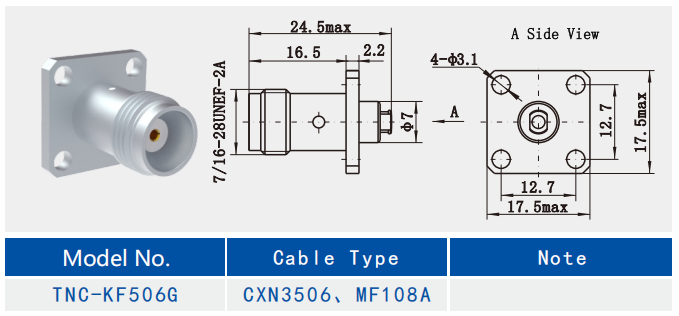

TNC Female Nickel Plated 50Ohm Flange Mount Stainless Steel RF Coaxial Connector
The TNC series product is essentially a threaded variant of the BNC connector, distinguished by its screw threads for mating. These miniature, threaded, and waterproof RF connectors maintain a consistent 50-ohm impedance and are designed to operate within the DC-11 GHz frequency range. There are two main types of TNC connectors: standard and reverse polarity. Constructed primarily from die-cast and molded components, these cost-effective connectors are well-suited for a broad spectrum of commercial applications, although their performance may not match that of industrial or high-performance grade products. TNC connectors are widely used in avionics, communications, and various general industrial sectors. Additionally, reverse polarity and 75-ohm versions of the TNC connector are also available.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics |
| Frequency Range | DC~4GHz |
Impedance | 50Ω |
Rated Voltage | 2500VRMS (Maximum sea-level) |
Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) |
Insulation Resistance | ≥2000MΩ |
Contact Resistance | Outer conductor | ≤6mΩ |
Center conductor | ≤1.5mΩ |
VSMR | ≤1.3 |
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Cable Retention | 100N min |
| Contact Retention | 10N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1. Structural features
Threaded Connection: Adopting threaded connector, it is convenient and fast to complete the connection by rotating only when installing, and the threaded connector has a self-locking function, which can effectively prevent the connector from loosening and improve the reliability of the connection.
Various shapes and polarity designs: Straight, 90-degree right-angle, bulkhead, 4-hole panel, and no-installation shapes, as well as standard polarity and reverse polarity designs, can meet the needs of different environments and installation scenarios.
2. High mechanical strength and durability: usually made of brass or stainless steel, the surface treatment may include nickel-plated or gold-plated, can withstand hundreds of times of plugging and unplugging operations without easy damage, but also can withstand a certain degree of tensile force and pressure, suitable for a variety of harsh environments.
Application:
1. Wireless base station: used to connect the base station equipment and antenna to ensure efficient transmission of wireless signals. For example, in the construction of 5G base station, TNC connector can guarantee the stable connection between base station and antenna, so that the wireless signal can be transmitted and received accurately.
2. Cell phone: TNC female connectors are used for the connection of RF circuits inside some cell phones, such as the connection between the antenna and the RF module on the motherboard, which helps to realize the wireless communication function of the cell phone.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
