K2.92 Male Stainless Steel Male RF Connector for CXN3506/MF108A Cable Plug
The K type, also known as the 2.92 type connector, is a series of commonly used millimeter wave connectors with a frequency range up to 40 GHz. It can be interchanged with SMA series and 3.5 series products through an air interface. This connector features a compact size, lightweight design, high-frequency usage, and reliable connection capabilities.

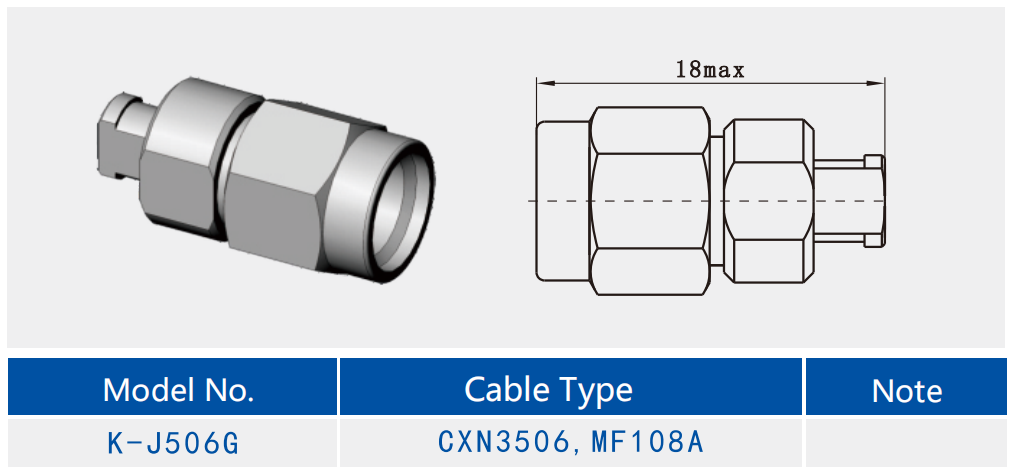

Outline Drawing :(mm)
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
| Part Number | |

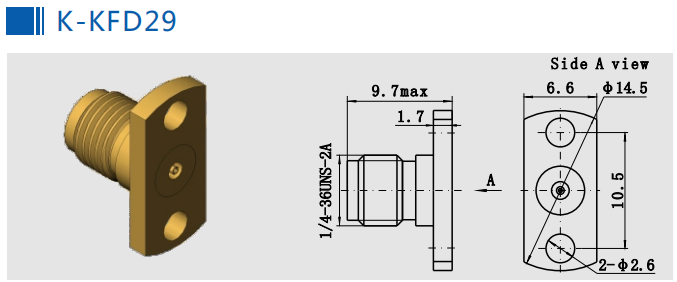

| K-KFD29 | 2.92mm Type K Female RF Coaxial Connector |

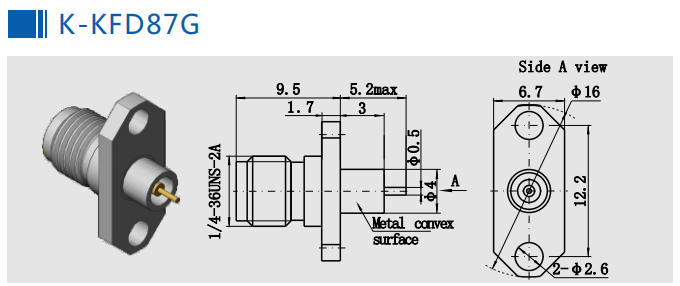

| K-KFD87G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD42 | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD61G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Features:
1. High Operating Frequency: The 2.92mm coaxial connector operates at frequencies up to 40GHz. This makes it highly suitable for millimeter-wave applications and meets the demands of modern RF technologies.
2. Low VSWR and Insertion Loss: By incorporating the advantages of air dielectric transmission lines, the 2.92mm connector exhibits low Voltage Standing Wave Ratio (VSWR) and minimal insertion loss. This results in reduced energy loss during signal transmission, preserving signal integrity.
Application:
1. The 2.92 stainless steel radio frequency coaxial connector has a wide range of applications across various fields, showcasing its versatility and importance in modern technology. Here are some of the primary application areas:
2. Telecommunications: The 2.92mm connector is extensively used in wireless communications, satellite communications, and high-speed data transmission systems. Its high-frequency performance makes it ideal for emerging technologies such as 5G and 6G networks.
3. Radar Systems: In civilian radar systems, the 2.92mm connector plays a crucial role in connecting antennas, transceiver modules, and other essential components. Its reliability and low loss characteristics ensure optimal radar system performance and accuracy.
