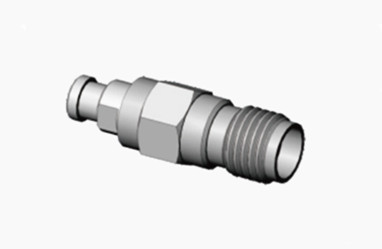

Straight Female K2.92 Stainless Steel RF Connector for CXN3506/MF108A Cable
The 50-ohm coaxial connectors with a 2.92 mm interface (Female) are designed for high-precision general-purpose RF and microwave applications. These superior performance connectors find extensive use in diverse test and measurement environments, spanning from cellular to satellite communications, ensuring optimal equipment matching and cable interconnectivity. Constructed from robust stainless steel, these connectors are engineered to endure repeated usage. They incorporate an air dielectric along with a low-loss plastic center conductor support.

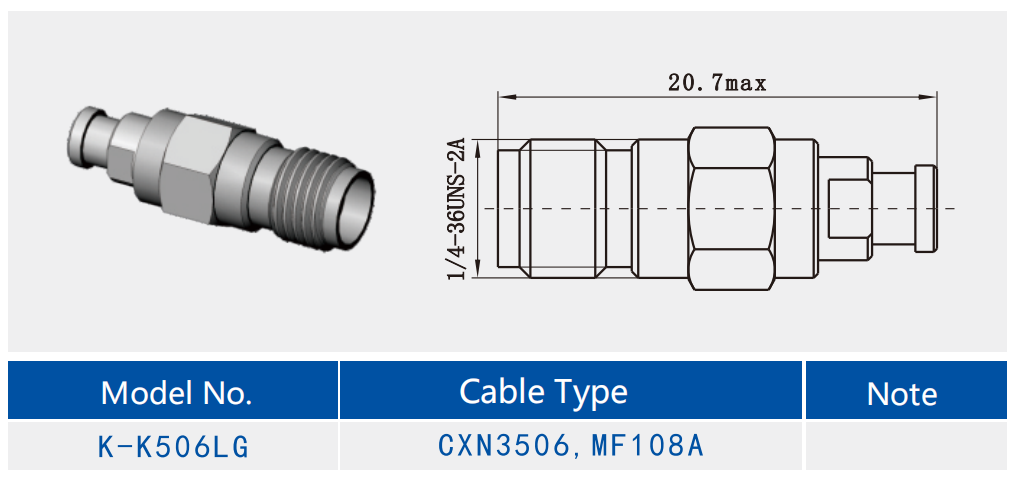

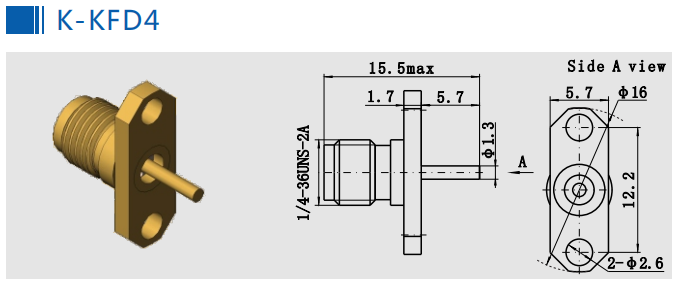

Outline Drawing :(mm)
Specification of 2.92mm 50Ohm Stainless Steel Straight RF Coaxial Connector Female :(mm)
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 250VRMS* |
| Dielectrics Voltage-resistance | 750VRMS* |
| Insulation Resistance | ≥ 5000 MΩ |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ |
| VSWR | ≤1.05 + 0.005f |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Temperature | -55℃ ~ +125℃ |
Features:
5. Reliability: The K2.92 connectors exhibit high reliability, stable performance, and good repeatability, making them suitable for long-term and frequent use.
6. Durability: The connectors are durable and can withstand multiple mating cycles without affecting performance.
7. Compatibility: The K2.92 connectors are compatible with other types of connectors, such as SMA and 3.5mm, providing more connection options and flexibility.
Application :
2. Wireless Communication Base Stations: In wireless communication base stations, especially in 5G and future 6G technologies, there is a high demand for connector performance. The K2.92 connector supports high-speed data transmission and stable signal connections due to its low VSWR (Voltage Standing Wave Ratio) and high reliability.
3. Precision Testing and Measurement Equipment: In laboratories and industrial environments, various high-frequency testing devices such as network analyzers and spectrum analyzers are used. The K2.92 connector plays a crucial role in these devices, ensuring the accuracy of test data and the high-performance operation of the equipment.
Other 2.92mm Male Female RF Connector:
| Part Number | |
| K-KFD4 | 2.92mm Type K Female RF Coaxial Connector |
| K-KFD28G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD8 | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD9G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
