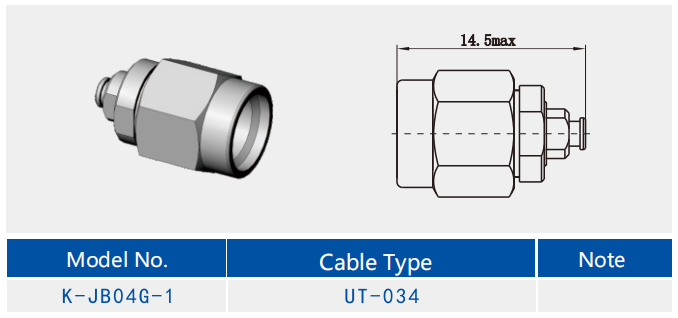

High Performance K2.92 Series Stainless Steel Straight RF Connector for UT-034 Cable
The K type connector, also known as the 2.92 type connector, is a widely used millimeter wave connector series. It features a frequency range of up to 40 GHz and can be interchanged with both SMA and 3.5 series products. The connector adopts an air interface and offers advantages such as compact size, lightweight design, high-frequency performance, and reliable connections.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
| Part Number | |

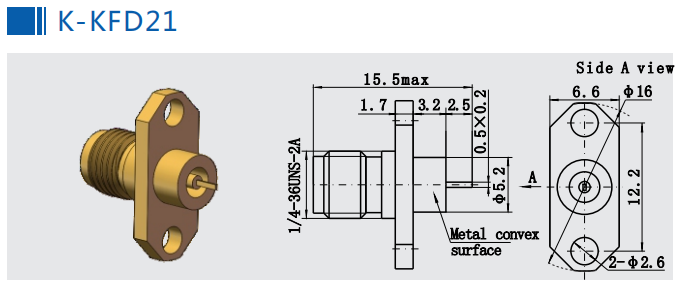

| K-KFD21 | 2.92mm Type K Female RF Coaxial Connector |
| K-KFD87G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD42 | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD61G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Features:
- Compact Size: The miniaturized design of the stainless steel K2.92 cable connector makes it highly suitable for applications with limited space.
- Lightweight Design: Its lightweight construction facilitates easy installation and maintenance, while also reducing the overall weight of the system.
- High-Frequency Performance: Capable of supporting frequencies up to 46GHz, it meets the demands for high-speed data transmission.
- Reliable Connection: Precision manufacturing ensures stability and reliability in various demanding environments.
Application:
Industrial Automation: In industrial control systems and sensor networks, K2.92 connectors are used to connect high-frequency signal transmission lines to achieve reliable data transmission.
6. Scientific Research and Laboratory Applications: In experimental research in physics, electronic engineering, and materials science, K2.92 connectors are used to connect experimental equipment and high-frequency signal sources to support high-precision experimental operations.
