2.4mm Female Brass Gold Plated Flange RF MMW Coaxial Connector
The 2.4mm range of products comprises high-performance millimeter wave (MMW) connectors that operate at frequencies up to 50 GHz. Utilizing an air interface and a threaded connection, these connectors boast attributes such as compact size, lightweight, high operational frequency, and secure connections. They are extensively utilized in high-frequency microwave measurements and millimeter-wave applications.
The precision 50 Ohm coaxial 2.4mm connectors are tailored for universal RF and microwave applications. Ideal for a broad spectrum of test and measurement scenarios, including cellular and satellite communications, these connectors ensure accurate equipment and cable interfacing. Made from sturdy stainless steel, these connectors are built to endure repetitive use. They are designed with an air dielectric and incorporate a low-loss plastic support for the center conductor, enhancing their performance and longevity.

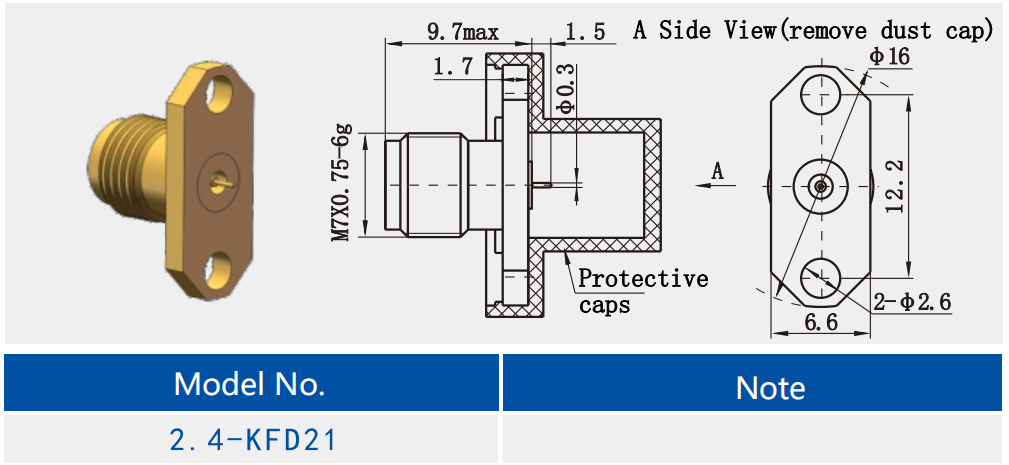

Specification (mm):
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 150 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 500 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio
VSWR | ≤ 1.3 |
| Contact Resistance | Center Conductor ≤ 4.0 mΩ |
| | Outer Conductor ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
This connector is designed to handle frequency ranges up to 50GHz, with a characteristic impedance of 50Ω. It uses an air dielectric to achieve high-performance transmission. Additionally, it is dimensionally compatible with existing SMA, 3.5mm, and 2.92mm connectors, allowing for precise fitting and incorporating the superior features of these earlier designs at the connection interface. The socket of this connector is designed with four slots, which increase flexibility and reduce wear on the inner conductor, thereby enhancing operational reliability.
Application:
1. Communication Equipment: Due to its superb high-frequency performance, this connector is extensively used in connecting antennas and communication devices, ensuring stability and efficiency in signal transmission.
2. Instrumentation: In test and measurement equipment, the 2.4mm wave connector is commonly used in network analyzers, spectrum analyzers, and other high-precision instruments to ensure accuracy in measurements.
3. RFID and SDR Systems: Radio Frequency Identification (RFID) and Software Defined Radio (SDR) systems require connectors with high frequency and reliability, where the 2.4mm wave connector also exhibits excellent performance.
Product Tags:
|
|

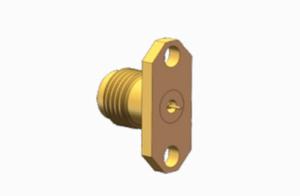

2.4mm Female Brass Gold Plated Flange Panel Connector for High Frequency RF MMW Coaxial Images
|
