WR18 BJ500 To 1.85mm Female Waveguide To Coax Adapter 39.2GHz~59.6GHz Right Angle

Brand Name : ELT

Model Number : 1.85-BJ500-KF4

Certification : ISO 9001:2015, ISO 14001:2015

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Credit Card, Paypal

Supply Ability : 10,0000 pcs per month

Delivery Time : Within 5-7 workdays(for stocks)

Packaging Details : Standard Export Carton

Product Name : WR18 Waveguide to Coaxial Adapters

Material : Brass

Frequency Range : 39.2-59.6GHz

Connector : 1.85mm

VSWR : 1.4

Impedance : 50 Ohm

Waveguide Size : WR18,BJ500

Body Style : Right Angle

Contact Now

WR18 BJ500 To 1.85mm Female Waveguide To Coax Adapter 39.2GHz~59.6GHz Right Angle

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP,SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of 1.85/BJ500-KF4:

Product Name	WR18 Waveguide to 1.85mm Coaxial Adapters-Right Angle Type
Model No.	1.85/BJ500-KF4
Coaxial type	1.85mm
Waveguide Size	WR18 (BJ500)
Body Style	Right Angle
Frequency Range	39.2-59.6GHz
SMA Impedance	50 Ohm
VSWR	1.4

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

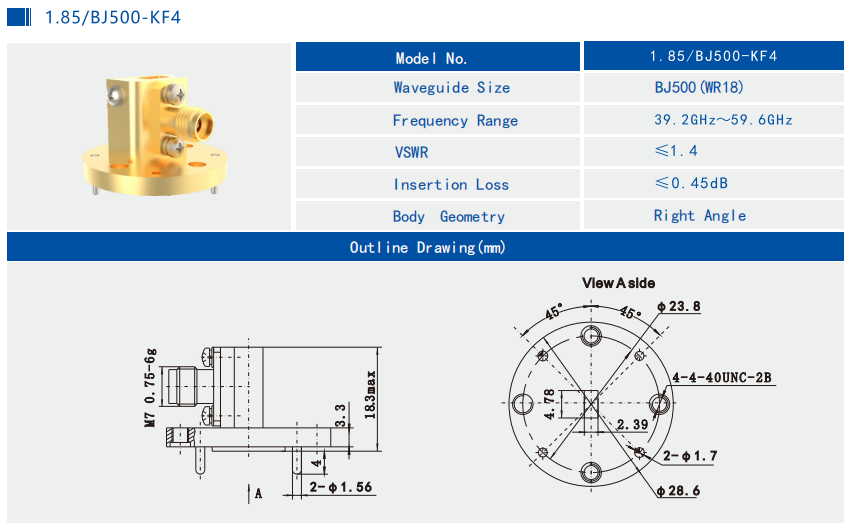

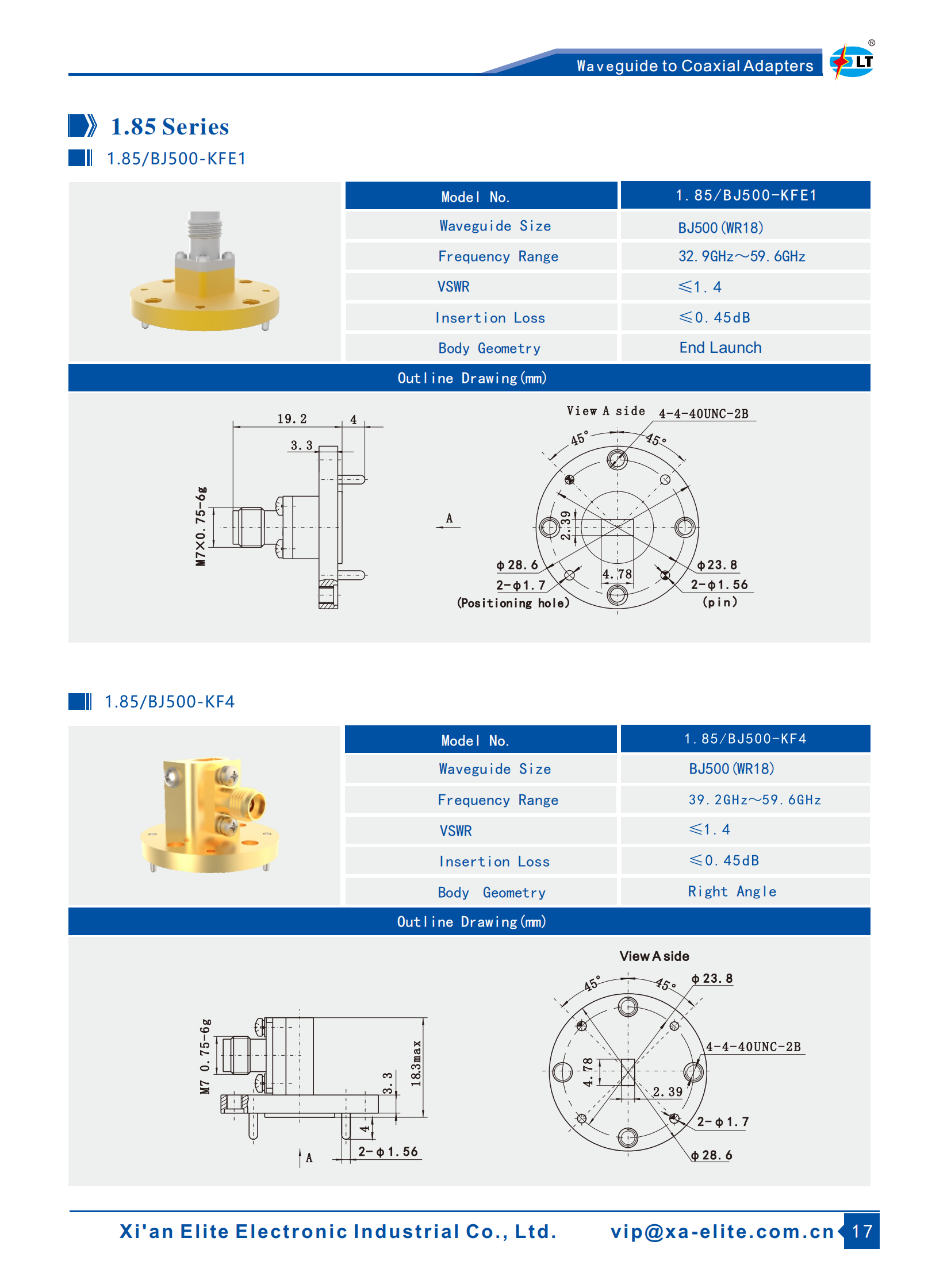

Outline Drawing and Pictures of WR18 BJ500 to 1.85mm Female Waveguide to Coax Adapter 1.85/BJ500-KF4:

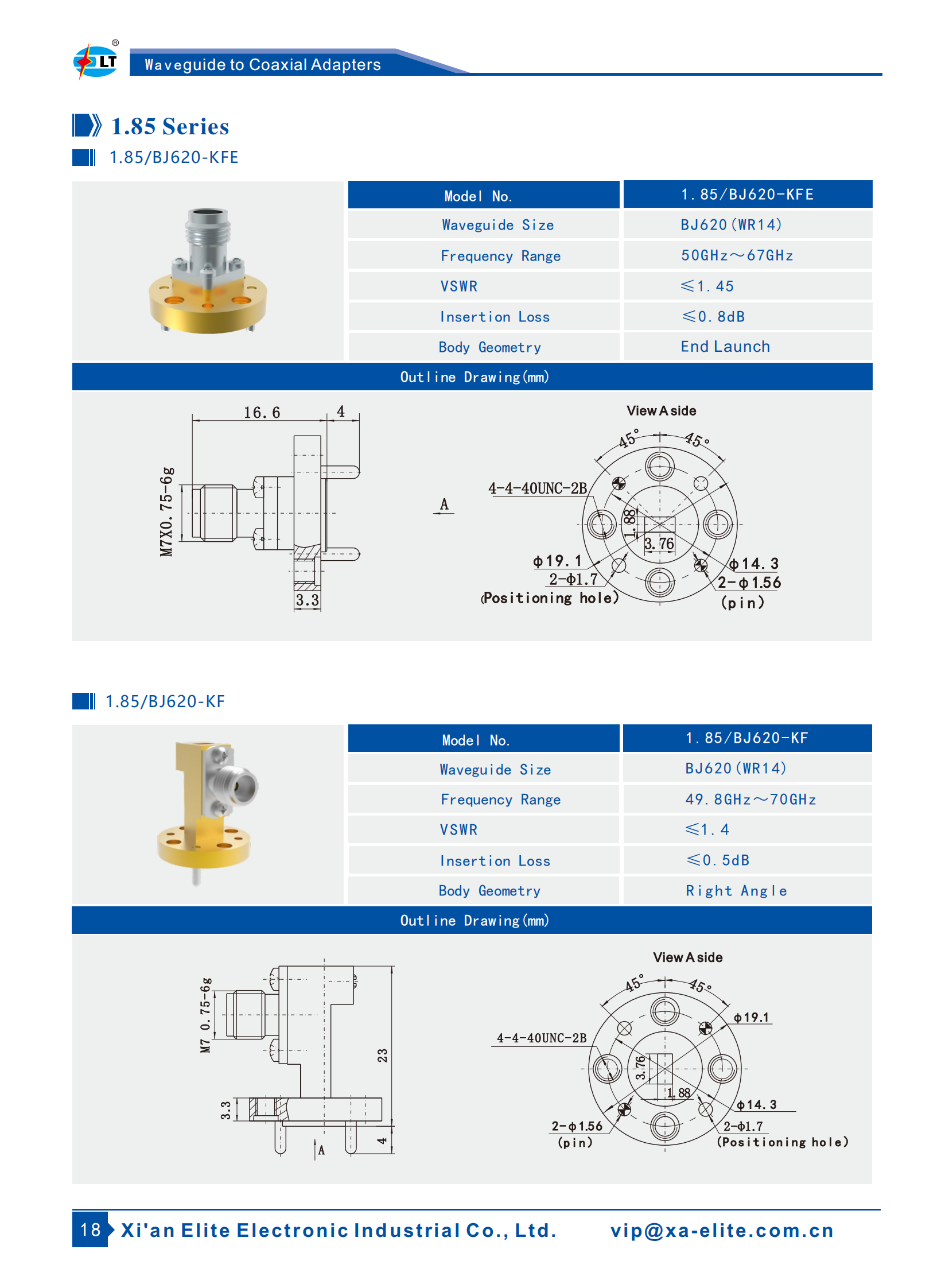

List of Waveguide to 1.85mm Coaxial Adapters:

Model Number	Description	Note
1.85/BJ500-KF4	WR18(BJ500) to 1.85mm female right angle adapters
1.85/BJ500-KFE1	WR18(BJ500) to 1.85mm female end launch adapters	BJ500=WR18
1.85/BJ620-KF	WR14(BJ620) to 1.85mm female right angle adapters	BJ620=WR14
1.85/BJ620-KFE	WR14(BJ620) to 1.85mm female end launch adapters
Custom Type	Customized sizes are acceptable

WR18 BJ500 To 1.85mm Female Waveguide To Coax Adapter 39.2GHz~59.6GHz Right Angle

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

Waveguide to Coax Adapter-ELT 2024.pdf

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
