SSMA Male Stainless Steel RF Connector for CXN3506/MF108A Cable
The SSMA Series RF coaxial connector offers a miniaturized alternative to the standard SMA connector, boasting a streamlined design that doesn't compromise on performance. Renowned for its wide frequency band capability and unwavering reliability, this connector has become the go-to solution across diverse industries, including aviation, aerospace, and microwave communications. Its compact size allows for efficient use in space-restricted areas, while maintaining the high-performance standards expected from RF connectors. Trusted for its ruggedness and versatility, the SSMA connector is a critical component in various high-frequency applications where size and reliability are key factors.
Specifiacation of SSMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials |
| Impedance | 50Ω |
| Frequency Range | DC~30GHz |
| Rated Voltage | 250 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥2000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Stainless steel passivated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.79 -1.13 N.m |

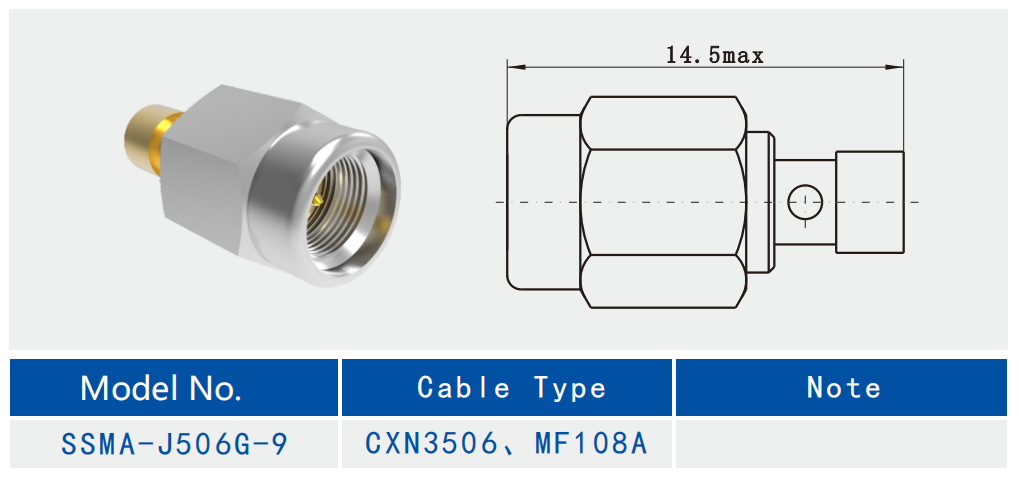

Outline Drawing:(Unit:mm)
Key Features:
1. Versatility: Despite being a scaled-down version of SMA, SSMA connectors are usually compatible with standard SMA components, offering users flexibility in upgrading or replacing equipment.
2. Low Return Loss: The design aims to minimize signal reflections, ensuring efficient transmission and minimal loss.
3. High Power Handling Capacity: Despite their reduced size, SSMA connectors can still manage relatively high power levels, fitting applications requiring significant power transfer.
Application:
1. Medical Devices: Some high-frequency medical equipment, such as electrosurgical units and RF therapy devices, may use SSMA connectors for signal connectivity.
2. Scientific Research: In scientific experiments, particularly those involving high-frequency signals, SSMA connectors can provide precise measurements and signal fidelity.
3. Radio Frequency Identification (RFID): SSMA connectors might be used in some high-frequency RFID systems to link antennas and other RF components.
