Gold Plated SSMA Female 2-hole Flange RF Connector for 2#Semi-rigid/Semi-flexible Cable
SSMA series RF coaxial connectors represent the miniaturized versions of SMA connectors, distinguished by their reduced dimensions, wide frequency range, and high dependability. These connectors are widely deployed across diverse sectors including aviation, aerospace, and microwave communication technologies.
Key Features:
1. Good Mechanical Strength: Despite their reduced size, SSMA connectors still offer sufficient mechanical strength to ensure secure connections and resistance to pulling forces.
2. Compatibility: SSMA connectors are usually compatible with SMA and other similar connectors, offering flexibility between different systems.
3. Low Insertion Loss: The electrical design of SSMA connectors ensures low insertion loss within their operating frequency range, meaning that there is minimal loss of signal as it passes through the connector.
4. Sealing Ability: Some SSMA connectors are designed to provide a sealed connection, which is critical for applications that need to keep moisture and contaminants out in harsh environments.

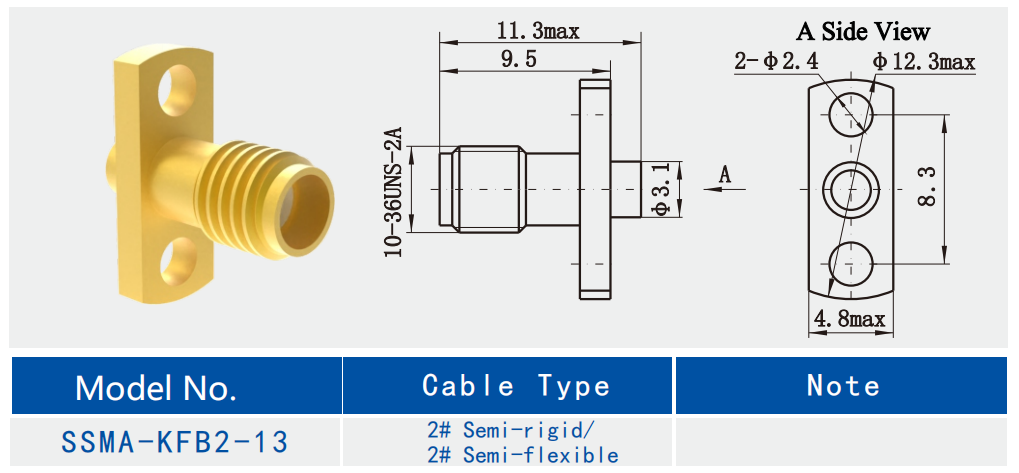

Outline Drawing:
Specifiacation of SSMA RF Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials |
| Impedance | 50Ω |
| Frequency Range | DC~30GHz |
| Rated Voltage | 250 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Stainless steel passivated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.79 -1.13 N.m |
Application:
1. Research and Laboratory Applications: In scientific research settings, SSMA connectors can be used for building and testing high-frequency circuits and antenna designs.
2. RFID (Radio-Frequency Identification): Between RFID readers and tags, SSMA connectors can be used to improve signal quality and reading distances.
3. Broadcasting and Streaming: In broadcast television and streaming transmission equipment, SSMA connectors help ensure high-quality signal transmission.
Related Product:
1.Mini SMA Microstrip series 2 Holes Flange Connectors
2.SMA Female RF Connectors for cable RG178
2.Mini SMA PCB Panel Mount 4 Holes Flange Connectors
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
