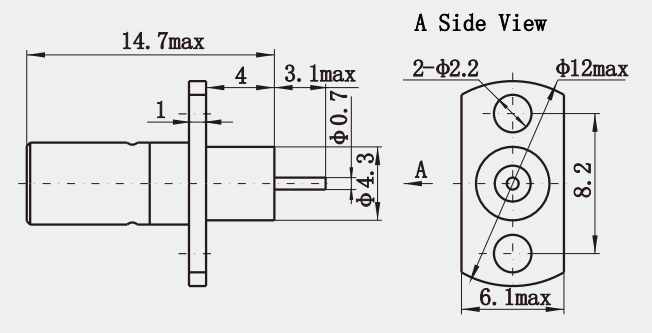

SSMB Female Flange Mount with Microstrip RF Connector
SSMB series products are miniature push-in and snap-in radio frequency coaxial connectors developed and manufactured in accordance with IEC60169-19. They have the characteristics of small size, light weight, easy to use, etc., and are used in micro radio equipment and instruments.
Specifiacation:
| Electrical Characteristics |
| Characteristic Impedance | 50Ohm |
| Frequency Range | 0~3GHz |
| VSWR | ≤1.22 |
| Dielectric Withstanding Voltage | ≥1000VRMS,50Hz at sea level |
| Dielectric Resistance | ≥1000MΩ |
| Contact Resistance | Center conductor | ≤3mΩ |
| Outer conductor | ≤2mΩ |
| Material & Mechanical Characteristics |
| Body | Brass Au Plated |
| Insulator | PTFE |
| Center conductor | Brass Au Plated |
| Durability | Mating cycles ≥500 |
| Temperature Range | -55-+155℃ |
| Suitable for cable | RG316 |

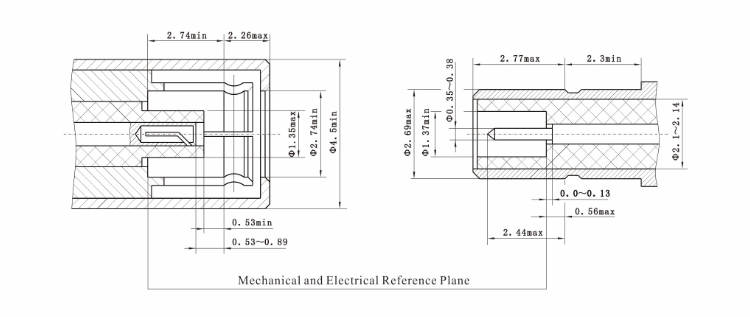

| Interface | According to IEC60169-52 |
Product Detail
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Application:
Mobile Communications: In the field of mobile communications, SSMB connectors can be used to connect transmission cables on the base station side, as well as antenna connections within various mobile devices.
Satellite Communications: Satellite communication equipment often requires compact, high-performance connectors to ensure stable signal transmission, and SSMB connectors meet these requirements.
Wireless Local Area Networks (Wi-Fi): Within Wi-Fi equipment, SSMB connectors can be used to connect coaxial cables in routers, access points, or other wireless devices.
RF Test Equipment: In RF testing and measurement equipment, SSMB connectors are widely used due to their high-frequency performance.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
