SMA Female Right Angle Flange Mount RF Connector Matched Pin φ0.4

Name: SMA Female Right Angle Flange Mount RF Connector Matched Pin φ04
Brand: ELT (Elite)
Price: 1 USD

China SMA Female Right Angle Flange Mount RF Connector Matched Pin φ0.4 wholesale

Brand Name : ELT (Elite)

Model Number : SSMA-KWFD44

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Product Name : SMA RF Conector

Plating : Gold Plated

Gender : Female

Impedance : 50Ω

Frequency : DC~18GHz

Durability : 500 Cycles

Model : SMA-KWFD44

Contact Now

SSMA Female Right Angle Flange Mount Matched Pin φ0.4 RF Connector

The SSMA Series RF coaxial connector is a smaller version of the SMA connector, known for its compact size, broad frequency range, and high reliability. This connector is commonly used in industries such as aviation, aerospace, microwave communication, and more.

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.3
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

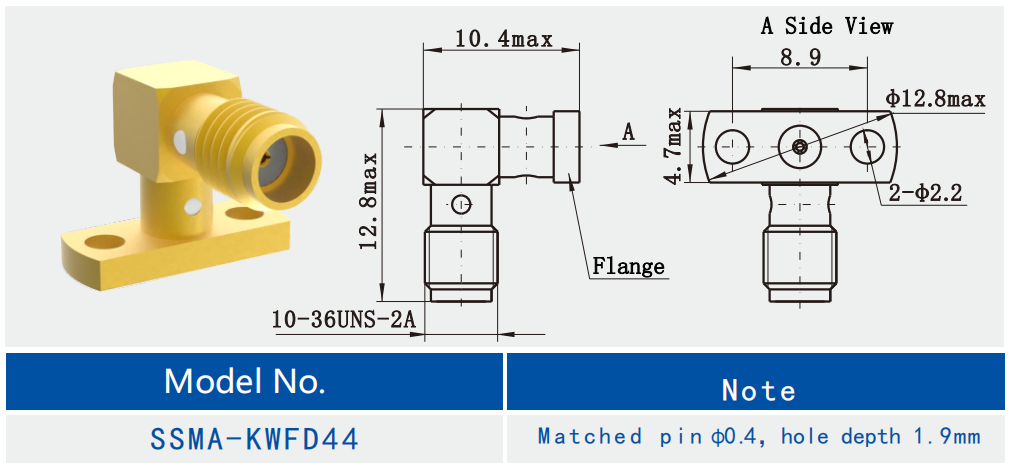

Outline Drawing:(mm)

Similar Products:

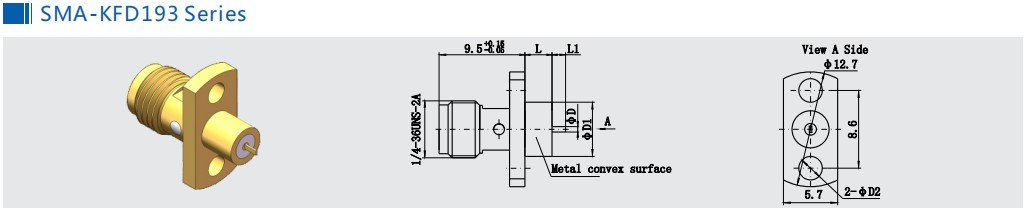

1.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack

Model No.	L	L1	D	D1	D2	Note
SMA-KFD193	4	1.5	0.5*0.2	4	2.2	Terminal flat side is parralled to the long side of the flange
SMA-KFD524	5	2.5	0.5*0.2	4	2.6
SMA-KFD773	4	4	φ1.3*0.2	5.2	2.2
SMA-KFD1207	3.5	5	0.5*0.2	4.1	2.6

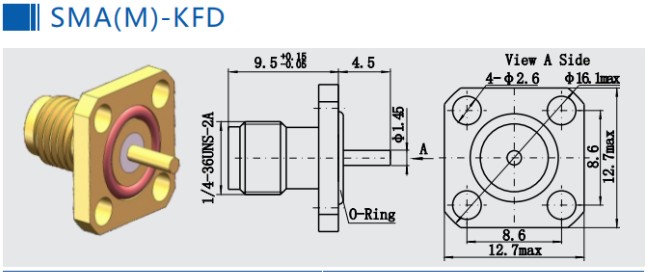

2.Hermetically sealed Female SMA RF Conectors

Model No.	Note
SMA(M)-KFD	Hermetic seal SMA female 4-hole flange rf connector

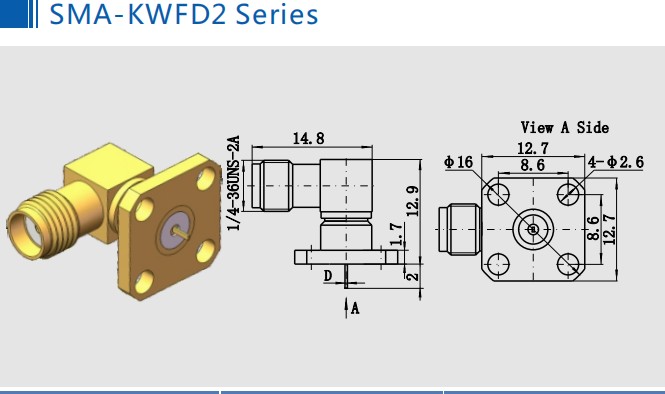

3.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors

Model No.	D	Note
SMA-KWFD2	0.2*0.5	SMA female right angle 4-hole flange rf connector
SMA-KWFD109	0.5*0.2	SMA female right angle 4-hole flange rf connector

Application:
The SSMA connector is a miniaturized coaxial connector primarily used for high-frequency applications. It has a characteristic impedance of standard 50 ohms and is suitable for high frequency ranges, typically between DC to 26.5 GHz. Due to its high performance characteristics, the SSMA connector is widely used in various industries such as aerospace, defense, and wireless communications.

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
