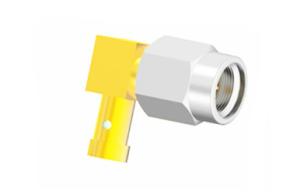

Stainless Steel SMA Male Right Angle RF Connector For SFF-50-1.5-1 Cable

Name: Stainless Steel SMA Male Right Angle RF Connector For SFF50151 Cable
Brand: ELT (Elite)
Price: 1 USD

China Stainless Steel SMA Male Right Angle RF Connector For SFF-50-1.5-1 Cable wholesale

Brand Name : ELT (Elite)

Model Number : SSMA-JW3A-1

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Item : SMA RF Conector

Plating : Passivated

Gender : Male

Impedance : 50Ω

Frequency : DC~18GHz

Lifetime : 500 Cycles

Body : Stainless Steel

Application : audio/vedio/microwave

Contact Now

SSMA Male Right Angle RF Connector for SFF-50-1.5-1 Cable

The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector. It is known for its small size, wide frequency band, and high reliability. This connector is widely used in various industries such as aviation, aerospace, microwave communication, and more.

Key Features:

Space saving alternative to standard SMA
Threaded coupling mechanism offers reliability for rugged designs
Ideal for high-frequency applications

Specifiacation of SSMA Rf Connectors:

Electronic and Material Characterials
Impedance		50Ω
Frequency Range		DC~30GHz
Rated Voltage		250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		750 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass gold plated
	Female	Beryllium copper gold plated
Shell and other metal parts		Brass gold plated
		Stainless steel passivated
Cable sheath		Brass nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

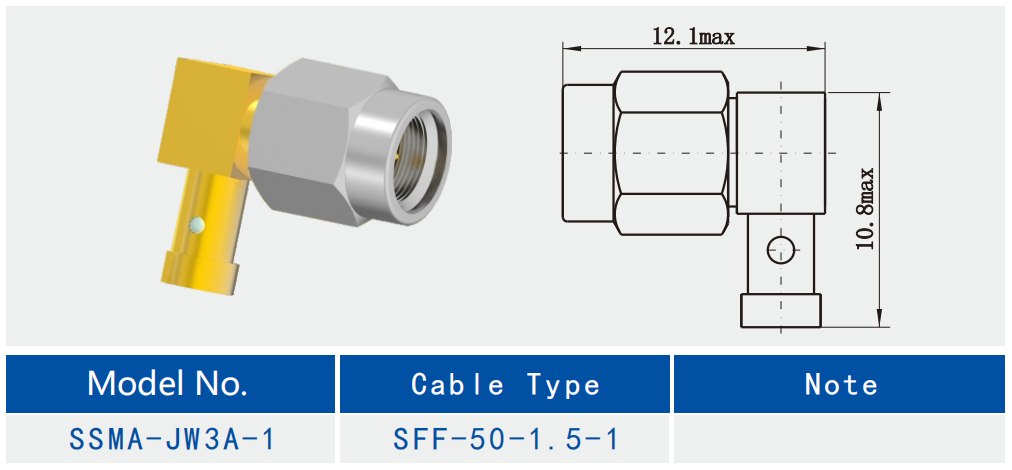

Detained outline drawing:

Product Cataloge:

RF Adapter

SMA RF Connector

SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Application:

The SSMA connector is a super-miniature RF coaxial connector with operating frequency range of DC-34 GHz, and some versions can even reach up to 35 GHz and expandable to 40 GHz. In addition, the standard SSMA connector has a characteristic impedance of 50 ohms. Due to its small size and stable characteristics, it is widely used in high-performance applications such as aerospace, defense, and wireless communications. At the same time, these connectors are also suitable for applications that require high-speed data transmission.

Interface Dimentions:

Stainless Steel SMA Male Right Angle RF Connector For SFF-50-1.5-1 Cable

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
