Gold Plated BMA Male Right Angle Flange Mount RF Connector For CXN3506 / MF108A Cable

Name: Gold Plated BMA Male Right Angle Flange Mount RF Connector For CXN3506 MF108A Cable
Brand: ELT (Elite)
Price: 1 USD

China Gold Plated BMA Male Right Angle Flange Mount RF Connector For CXN3506 / MF108A Cable wholesale

Brand Name : ELT (Elite)

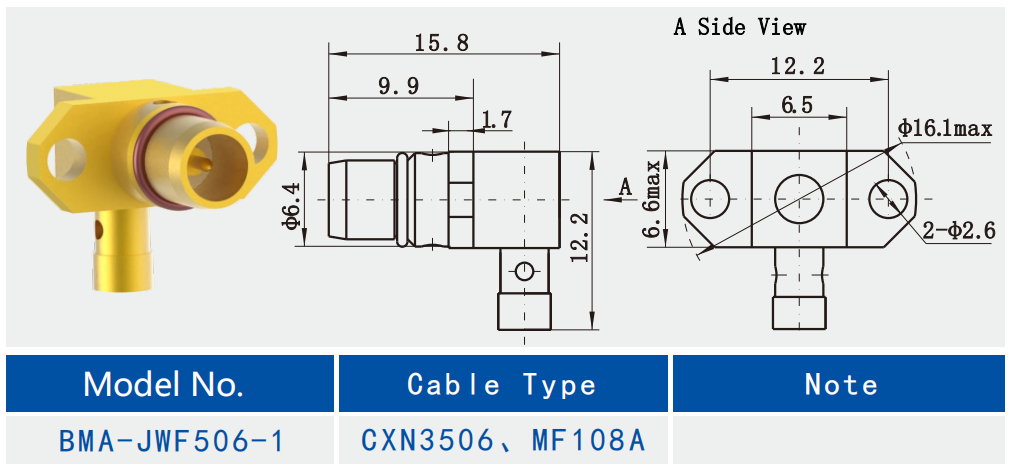

Model Number : BMA-JWF506-1

Certification : CE ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : BMA RF Connector

Plating : Nickel/Gold Plated

Durability : 500 Cycles

Contact material : Brass, BeCu

Material : Brass

Design Standard : IEC 1169-33

Type : Right Angle

Gender : Male

Contact Now

Gold Plated BMA Male Right Angle Flange Mount RF Connector for CXN3506/MF108A Cable

The BMA series is a type of blind mate connector that is developed and produced according to IEC1169-33. It features a new type spring plate structure, providing reliable contact and superior electrical characteristics. The advantage of this connector is that it can float axially and radially, with a small average space between each point connector and light weight, making it suitable for use in the blind mate of chassis cabinets. The BMA series is widely used in module connectors for chassis cabinets. They are interchangeable with the same-type connectors from abroad, allowing for rapid engagement and disengagement, and are commonly used to connect coaxial cables in radio equipment and instruments.

Gold Plated BMA Male Right Angle Flange Mount RF Connector For CXN3506 / MF108A Cable

Specification

Electrical Characteristics
Impedance	50Ohm
Frequency Range	DC~18GHz
Rated Voltage	250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	1000 VRMS (Maximum sea-level)
Insulation Resistance	≥5000MOhm
Contact Resistance	Outer conductor	≤2.0mOhm
	Center conductor	≤0.5mOhm
VSMR	≤1.3

Product Detail
Gold Plated BMA Male Right Angle Flange Mount RF Connector For CXN3506 / MF108A Cable

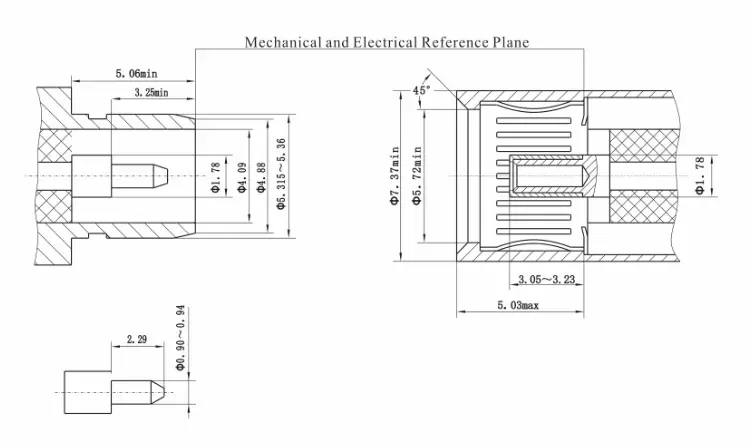

Material & Mechanical Characteristics
Center Conductor	Male/Plug	Brass	Gold plated
	Female/Socket	Sn-P bronze	Gold plated
Resilience Contact	Beryllium bronze		Nickel Plated
Shell / Housing	Brass, stainless steel		Nickel Plated
Insulators	PTFE
Sealing Ring	Silicone Rubber
Durability	500 cycles

RoHS Compliant	Yes
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	0.6N max
Un-Coupling Force	0.6 N max

Environmental Specification:

Operating Temperature	-55 to +155Deg C
IP Rating ( Mated )	IP64

Features:

Reliable contact and superior electrical characteristics
Axial and radial floating capability
Small average space between each point connector
Light weight
Suitable for use in the blind mate of chassis cabinets
Interchangeable with the same-type connectors from abroad
Rapid engagement and disengagement
Commonly used to connect coaxial cables in radio equipment and instruments.

Application:

* Broadband

* Instrumentation

* Telecom

* Computers

* Broadcast

* Video systems

* Automotive

* Telecommunications

* Wireless industries

* Measurement equipment

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
