TNC Male Right Angle RF Cable Connector For UFB205A Unleash Unmatched Connectivity

Name: TNC Male Right Angle RF Cable Connector For UFB205A Unleash Unmatched Connectivity
Brand: ELT (Elite)
Price: 1 USD

China TNC Male Right Angle RF Cable Connector For UFB205A Unleash Unmatched Connectivity wholesale

Brand Name : ELT (Elite)

Model Number : TNC-JW205

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : TNC RF Connector

Plating : Nickel Plated

Impedance : 50Ω

Design Standard : IEC 60169-17

Contact material : Brass, BeCu

Durability : 500 Cycles

Type : Straight

Body : RA/Right Angle

Gender : Male

Contact Now

Unleash Unmatched Connectivity with TNC Male Right Angle RF Cable Connector for UFB205A

The TNC series product is designed as a threaded version of the BNC connector. The TNC RF connectors feature screw threads for mating. These miniature, threaded waterproof units have a constant 50Ohm impedance and operate from DC-11GHz. There are two types of TNC connectors: standard and reverse polarity. These low-cost connectors typically utilize die-cast and molded components. While their performance may not be equal to industrial or high-quality grade products, these connectors are ideal for use in various commercial applications. Widely used for antenna connections, TNCs have many applications in avionics, defense, communications, and general industrial markets. Reverse polarity and 75Ohm TNCs are also available.

TNC Male Right Angle RF Cable Connector For UFB205A Unleash Unmatched Connectivity

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Application:

* Cellular mobile telephones

* Instrumentation

* Base Station

* Network

* Radar

* Telecommunications

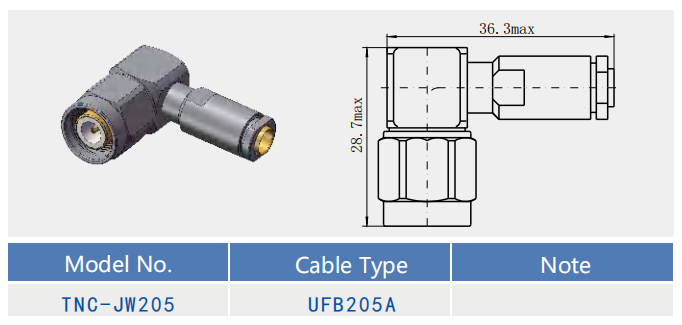

Detailed Drawing of Unleash Unmatched Connectivity with TNC Male Right Angle RF Cable Connector for UFB205A:

Unit:(mm)

TNC Male Right Angle RF Cable Connector For UFB205A Unleash Unmatched Connectivity

Features:

Threaded connection: This design provides better resistance to vibration and impact, ensuring secure and reliable mating connections.
Impedance of 50Ohms: It exhibits excellent performance across the entire DC-11GHz frequency range.
Frequency range: The optimal operating frequency range is 0-11GHz, providing wider application possibilities compared to the BNC connector (suitable for frequencies up to 4GHz). In the microwave frequency band, the TNC connector even outperforms the BNC connector.
Two types of TNC connectors are available: standard and reverse polarity. The reverse polarity type can further be divided into a 75Ohm version.
Widely used for antenna connections, TNC connectors have numerous applications in avionics, defense, communications, and general industrial markets. They are also compatible with various types of RF cables such as RG 174, RG 188, RG 316, etc.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
