SMP Hermetically Sealed Male RF Plug For PCB Mount Superior Connectivity And Reliability

Name: SMP Hermetically Sealed Male RF Plug For PCB Mount Superior Connectivity And Reliability
Brand: ELT (Elite)
Price: 1 USD

China SMP Hermetically Sealed Male RF Plug For PCB Mount Superior Connectivity And Reliability wholesale

Brand Name : ELT (Elite)

Model Number : SMP(M)-JHD245

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 200pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Credit Card

Supply Ability : 300,000,000 pcs per year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Connector : SMP

Product name : SMP Male Hermetically Sealed Connector

Gender : Male

Frequency Range : DC~40GHz

Impedance : 50Ω

Interface Form : Limited Detent/Smooth Bore

Glass : 7052 7070

Hermecity : ≤1.01325*10^-3 Pa.cm^3/s

Contact Now

Premium SMP Hermetically Sealed Male RF Plug for PCB Mount: Superior Connectivity and Reliability

SMP is a compact push-on or snap-fit RF coaxial connector that offers small size, light weight, superior seismic performance, and broad operating bandwidth. With an operating frequency range of up to 30GHz (our SMP connector can even reach 40GHz), the plug features three interface options: full detent, limited detent, and smooth bore (with braking). The PCB mount, cable mount, and in-series adapters provide reliable interconnection solutions for board-to-board, blind mate, and rack-and-panel applications while maintaining high package density. Ideal for use in demanding, high reliability, and modularly intensive installations.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Insulation Resistance	≥2000MΩ
Dielectrics Voltage-resistance	500VRMS*
Center Resistance	Outer conductor	≤4mΩ
	Center conductor	≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze, gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

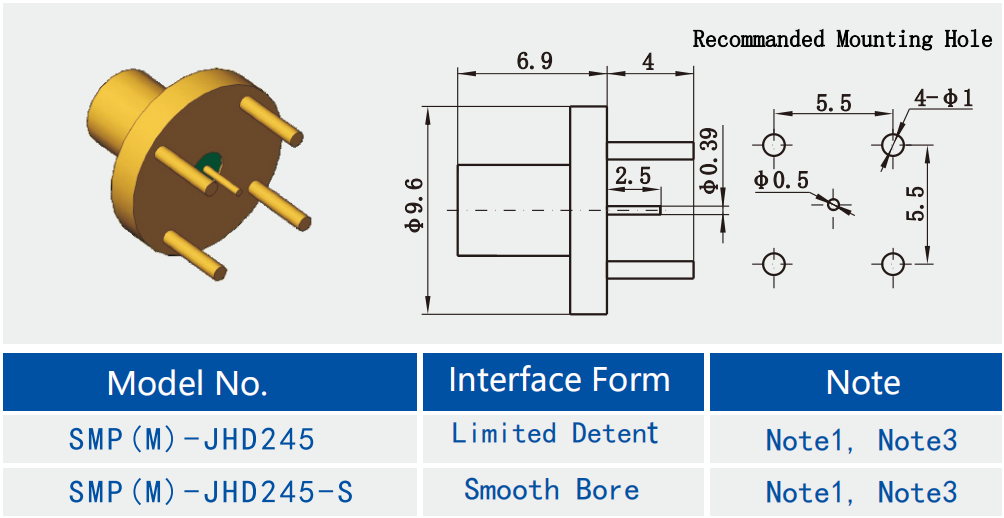

Detailed Drawing

SMP Hermetically Sealed Male RF Plug For PCB Mount Superior Connectivity And Reliability

Applications

High-density connections: SMP connectors are characterized by their small size and lightweight, making them suitable for high-density installations such as board-to-board, rack-and-panel, and other applications.
Wide frequency range: The operating frequency range of SMP connectors can reach up to 30GHz or even 40GHz, making them suitable for a variety of high-frequency applications.
Superior seismic performance: SMP connectors have excellent seismic performance, providing stable connections in vibration and shock environments.
Multiple interface options: SMP plugs offer three interface forms - full detent, limited detent, and smooth bore (including with braking), allowing users to choose the most suitable interface form based on their requirements.
High reliability: Made from high-quality materials and undergoing strict quality control and testing, SMP connectors ensure reliable operation in demanding applications requiring high reliability.

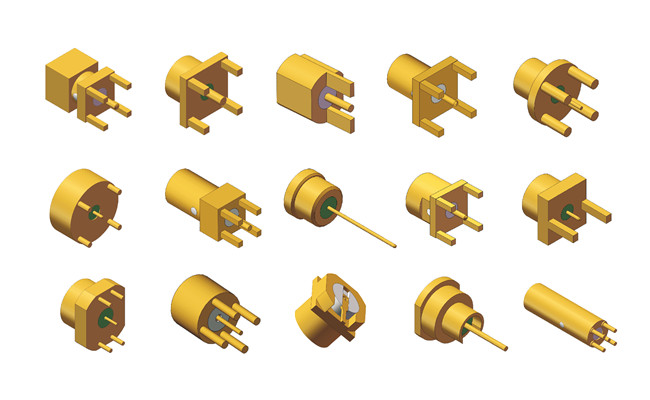

NOTE:

We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.

SMP Hermetically Sealed Male RF Plug For PCB Mount Superior Connectivity And Reliability

Features and Benefits

Gold plated

Sub-miniature

DC to 40 GHz

Compact size

Push-on or snap coupling

Full detent, Limited detent and Smooth bore

PCB & cable mount connector

Male and Female, Straight and Right Angle choice

Cable mount versions for both flexible and semi-rigid cable materials

Normal type and hermetic, Flange mount & Thread-In Mount choice
