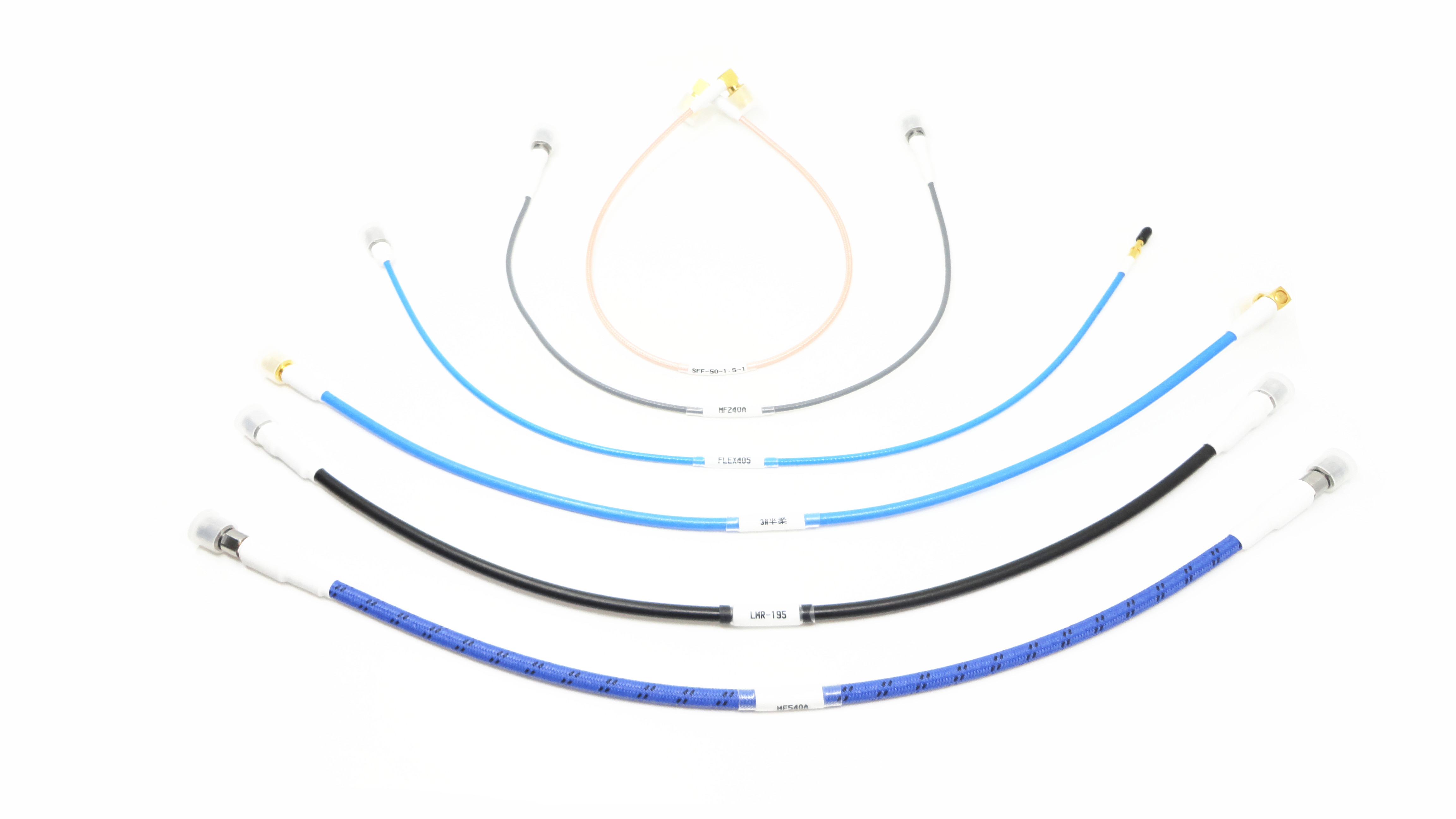

Qualified & High Reliable Performance ODM Cable Assembly with RF Connectors

Name: Qualified amp High Reliable Performance ODM Cable Assembly with RF Connectors
Brand: ELT (Elite)
Price: 1 USD

China Qualified & High Reliable Performance ODM Cable Assembly with RF Connectors wholesale

Brand Name : ELT (Elite)

Model Number : ODM Cable Assembly

Certification : CE ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,000 pcs Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : ODM Cable Assembly

Impedance : 50Ω

Certificate : CE ROHS

Type : male/female to male/female

Reference Freqeency range : DC~40GHz

Cable Length : 400mm

VSWR : ≤1.25

Surface Mount : Threaded Connection

Contact Now

Qualified & High Reliable Performance ODM Cable Assembly with RF Connectors

Welcome customized cable assembly (please send drawings or sample), with over a hundred patents and more than 20 years of manufacturing,we are confidence for provide excellent products.

Qualified & High Reliable Performance ODM Cable Assembly with RF Connectors

Specifiacation:

mpedance	50 Ω
Frequency Range	DC - 50 GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Application:

* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Avionics, radars
* Missiles and guidance systems
* Telecommunication systems
* Navigation systems
* Research centres
* Satellite communications

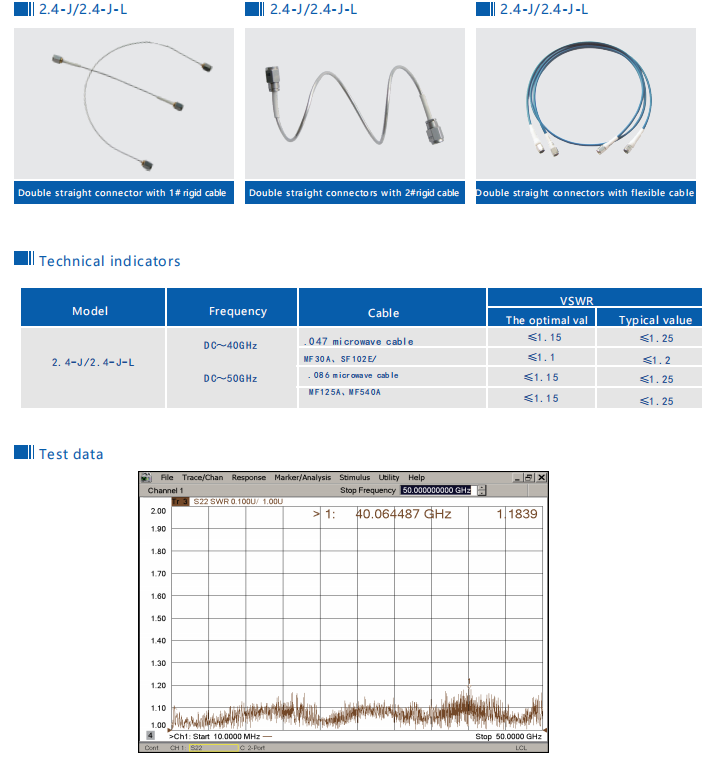

Detailed Data
Qualified & High Reliable Performance ODM Cable Assembly with RF Connectors

Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking

Product Cataloge:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Qualified & High Reliable Performance ODM Cable Assembly with RF Connectors Images
