SMP Female Gold RF Connector for 1# Semi-rigid/Flex Cable Connector
The SMP-style push-on connector interface typically has an inner female-to-female component, called a bullet or blindmate and two outer panel, circuit or cable-mounted receptacles called shrouds. The whole system lets you make connections without threads at all, so you don't need any tiny wrenches. The best part about this system is that a small amount of radial misalignment is possible during mating, something that would be unacceptable with threaded connectors.
Specification of SMP RF Connector
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Dielectrics Voltage-resistance | 500VRMS* |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze, gold plated |
| | Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |
Features and Benefits of SMP RF Connector
* Optional bullet adaptors in two standard lengths
* Performance up to 40GHz
* Compensates for misalignment in X and Y directions
* Interfaces for tight, more secure connections
* Non-magnetic options available for aerospace applications

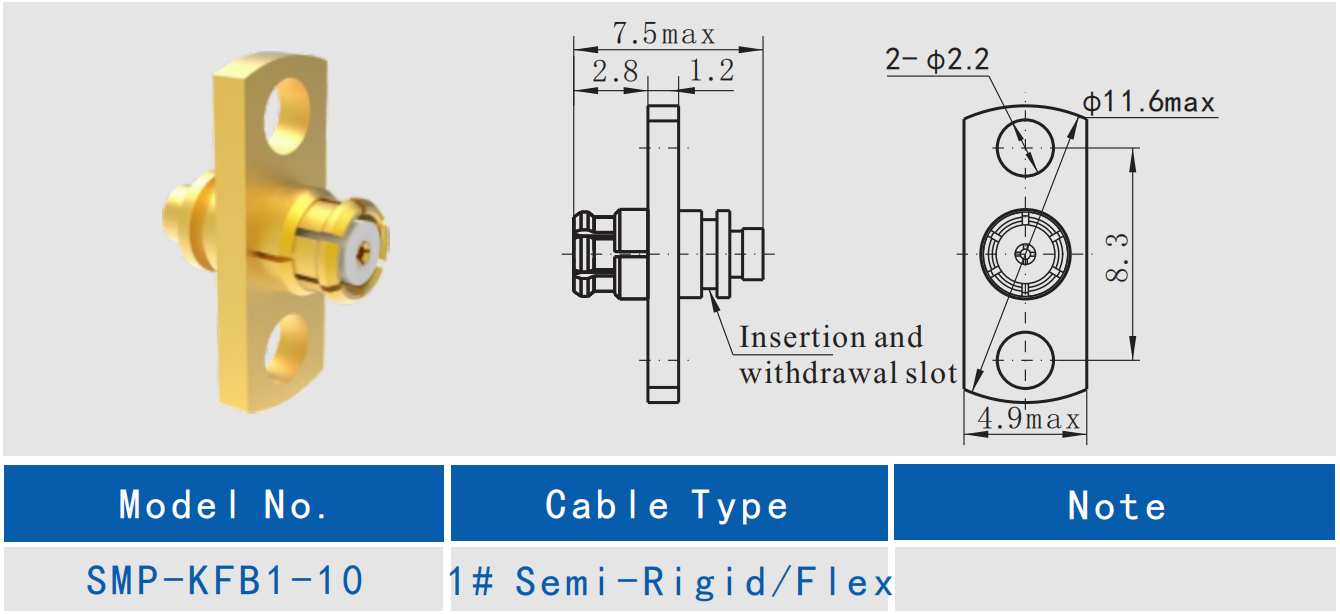

Detailed Drawing of SMP RF Connector(mm):
| Model Number | Description |
| SMP-KFB1-10 | SMP female RF Connector for 1#Semi-rigid/Flex Cable |
Other SMP RF Connector(mm): "K" means "female", "J" means "male"
Applications of SMP RF Connectors:
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
