SMP Male Stainless Steel Limited Detent, Interface depth 2.79 for 1# Semi-rigid/Flex Cable
SMP series product is an ultra-small push-in RF coaxial connector, which has the characters of small size, light weight, excellent
vabration-proof performance, and wide working frequency bandwidth, etc. Operating frequency up to 30GHz (Elite Electronic's
product of high performance SMP connector can reach 40GHz), and the plug has three interface forms- full detent, limited detent
and smooth bore(including with braking). Various interface forms can satisfy the required axial or radial movement of blind mating
in the couple usage of board-toboard system. It’s suitable for the install situation with the requirement of high reliability modular intensive.
Specification of SMP RF Connector
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Dielectrics Voltage-resistance | 500VRMS* |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze, gold plated |
| | Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |
Features and Benefits of SMP RF Connector
* Optional bullet adaptors in two standard lengths
* Performance up to 40GHz
* Compensates for misalignment in X and Y directions
* Interfaces for tight, more secure connections
* Non-magnetic options available for aerospace applications

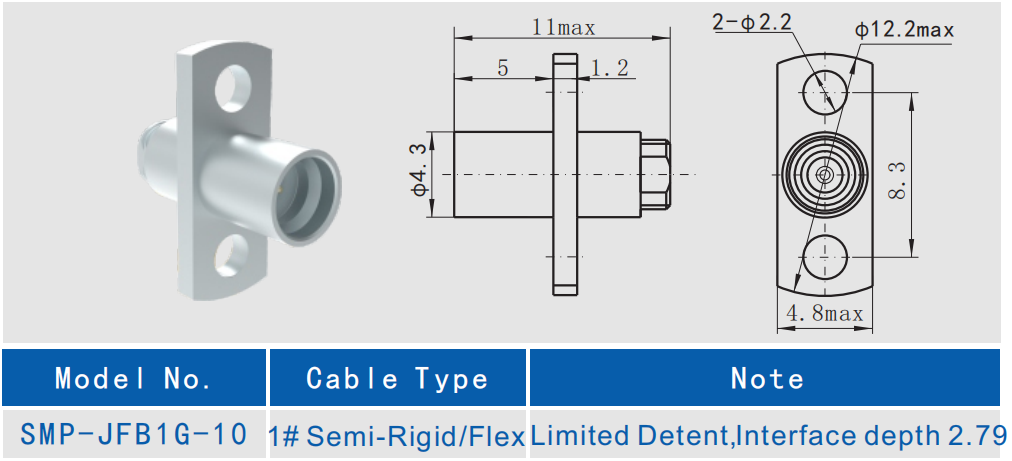

Detailed Drawing of SMP RF Connector(mm):
| Model Number | Description |
| SMP-JFB1G-10 | SMP male RF Connector for 1#Semi-rigid/Flex Cable Inner Conductor=0.29mm |
Other SMP RF Connector(mm): "K" means "female", "J" means "male"
Applications of SMP RF Connectors:
- Antennas
- Broadband
- Aerospace
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
