Straight Female SMP RF Connector for 1#Semi-rigid/Flex Cable Inner Conductor=0.29mm
The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.
The available detent systems, full, limited, and smooth bore, provide respective levels of engagement/disengagement forces. This family of interconnects addresses small package design needs. It can be utilized as a highly shielded interconnect for high data rate applications or in a board-to-board system using a floating bullet adapter. This floating bullet provides a link between mated pairs compensating for both radial and axial misalignment.
Specification of SMP RF Connector
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Dielectrics Voltage-resistance | 500VRMS* |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze, gold plated |
| | Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |
Features and Benefits of SMP RF Connector
* Designed to accommodate both radial and axial misalignment
* Push-on and snap-on mating styles for quick installation
* Designs available for board-to-board and cable-to-board configurations |

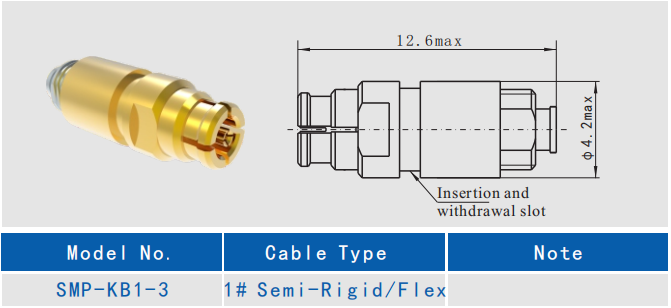

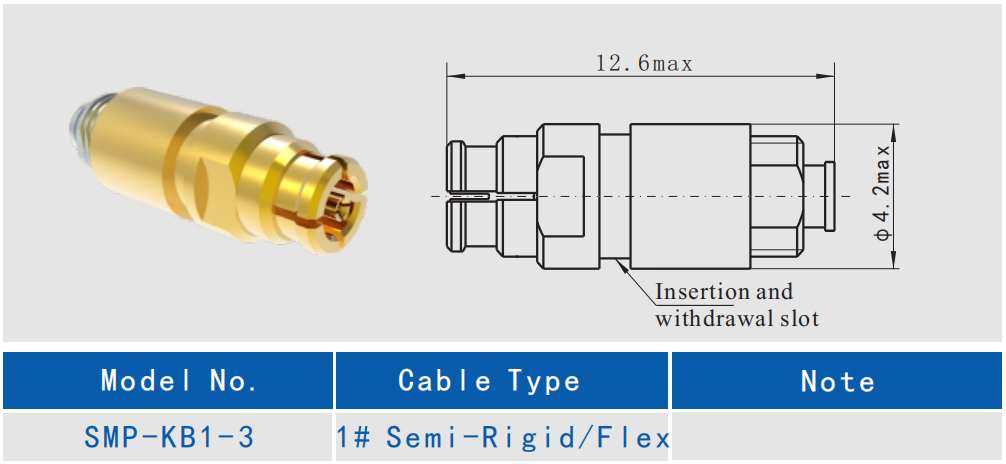

Detailed Drawing of SMP RF Connector(mm):
| Model Number | Description |
| SMP-KB1-3 | SMP Female RF Connector for 1#Semi-rigid/Flex Cable Inner Conductor=0.29mm |

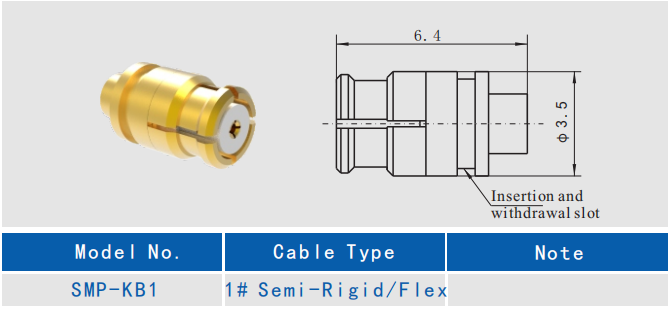

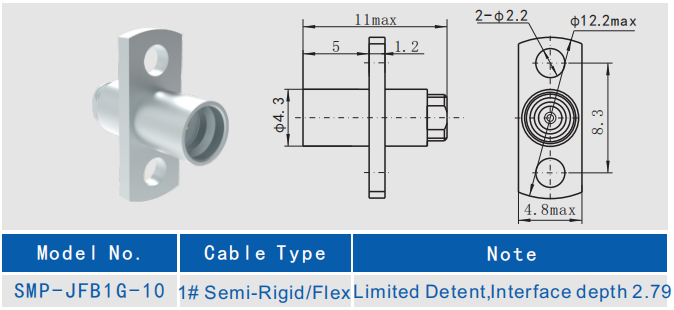

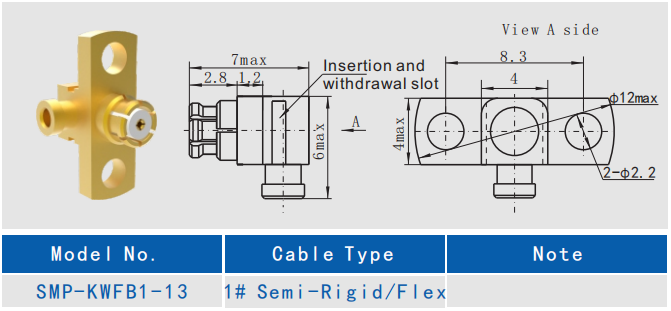

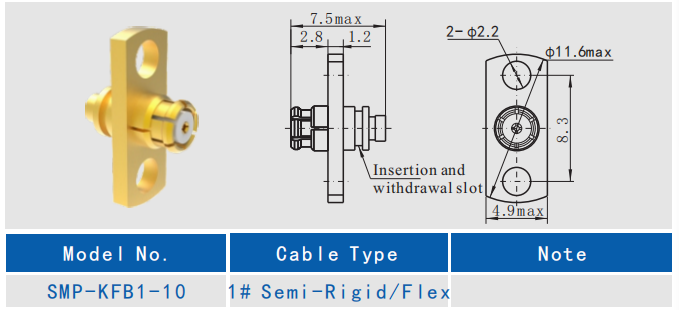

Other SMP RF Connector(mm): "K" means "female", "J" means "male"
Applications of SMP RF Connectors:
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
