K2.92mm Female to Female RF Connector Stainless Steel Adapter 17.3mm Max

Brand Name : ELT

Model Number : K-KKG

Certification : CE,ROHS

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Material : Stainless Steel

Gender : female to female

Product name : 2.92mm, K type, SMK

Keywords : Cable Connector

Item : Millimeter Wave Connectors

Plating : Nickel Plated

Application : RF

Contact Now

RF Adapter K2.92mm Female to Female RF Connector Stainless Steel Material 17.3mm Max

Xi'an Elite Electronic's 2.92 precision connectors have an impedance of 50Ω and an outer diameter of 2.92mm. They are applicable for test & measurement applications up to 40GHz, allow these high-quality connectors to meet the highest levels of reliability and repeatability performance. 2.92 connectors are intermateable with most 2.92, 3.5, SMA, as well as K connectors.

From the series of RF connectors, the 2.92mm K connectors are the part of a very wide range of radio frequency connect sections.
2.92mm connectors are male and female in genders, the male pin is shorter than that of 3.5mm to ensure that the external contacts of the male and female connectors involve before the pin and female receptacle do. RF connector 2.92mm covers the frequency range from 18GHz to 40GHz.

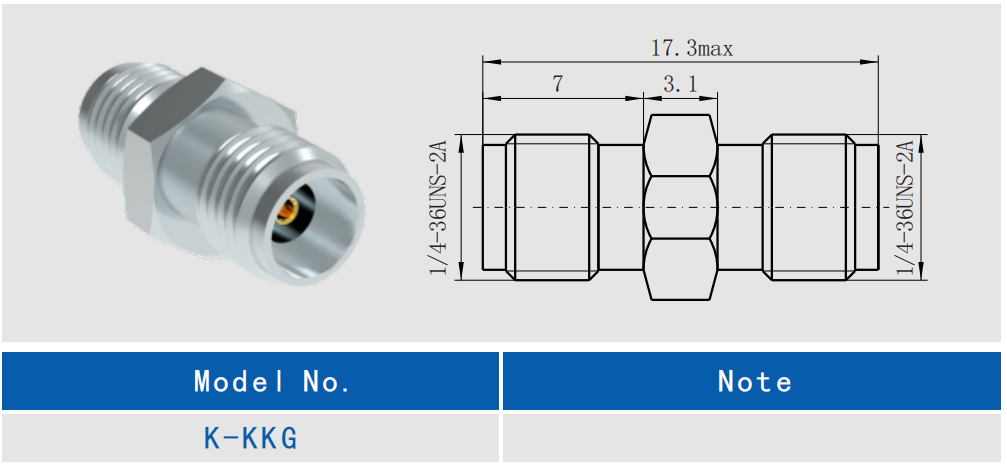

K2.92mm Female to Female RF Connector Stainless Steel Adapter 17.3mm Max
Specification:

Impedance	50Ω
Frequency Range	DC - 40GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing	Brass, Gold Plated, Stainless Steel, Passivated
Insulator	PEI/PLF
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Features:

* Frequency range DC to 40GHz
* Low VSWR
* Low RF Leakage
* Superior reliability
* Compatible with SMA and 3.5mm connector series

Application:

* High Speed Digital
* Instrumentation
* Satellite Communication Equipment (SATCOM)
* Cable Assemblies
* Test and measurement

Related products:

K2.92mm Female to Female RF Connector Stainless Steel Adapter 17.3mm Max

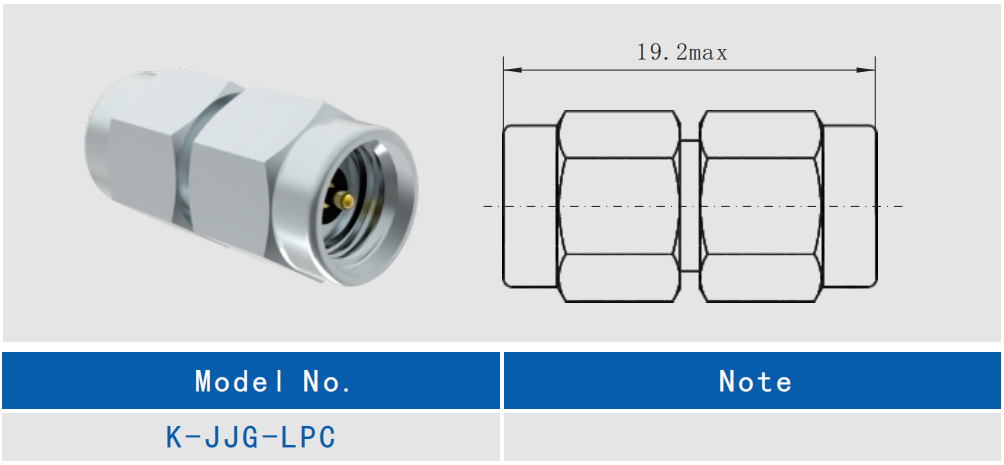

K-JJG-LPC

K male to female straight stainless steel adapter

K2.92mm Female to Female RF Connector Stainless Steel Adapter 17.3mm Max

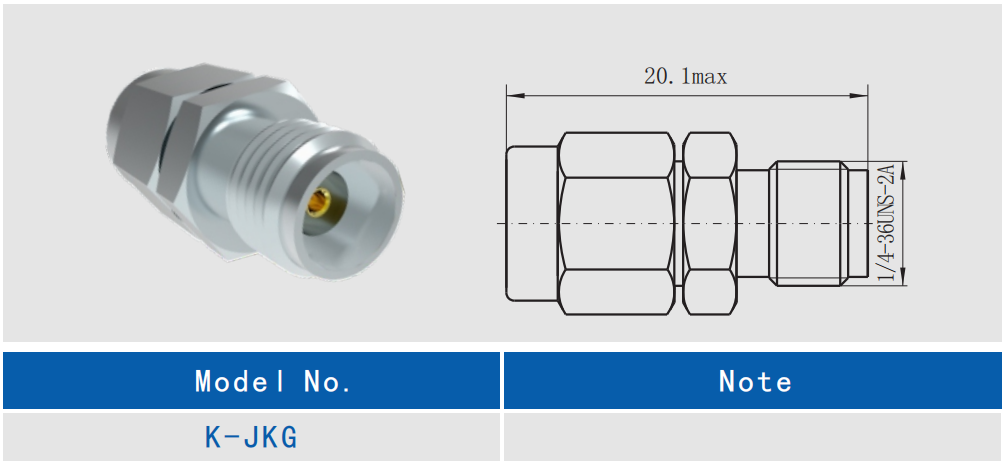

K-JKG

K male to female straight stainless steel adapter

K2.92mm Female to Female RF Connector Stainless Steel Adapter 17.3mm Max

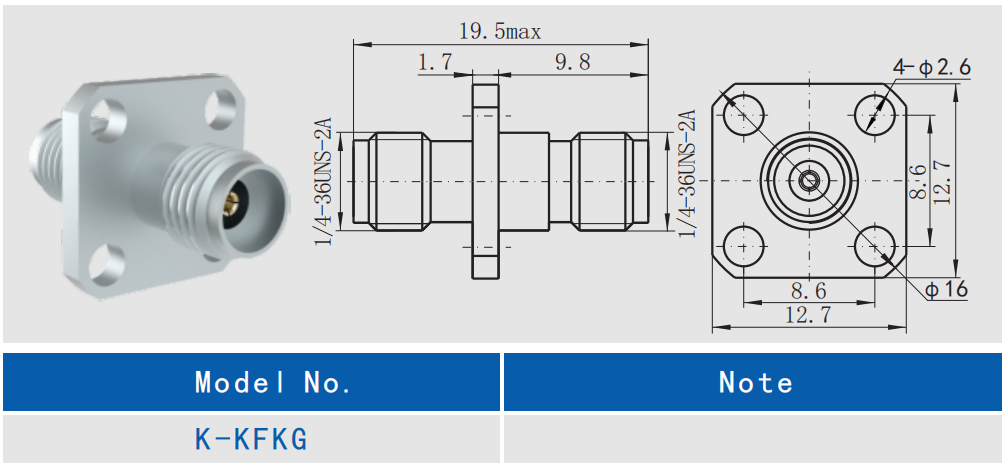

K-KFKG

K Female to Female Stainless Steel 4-hole Flange Adapter
