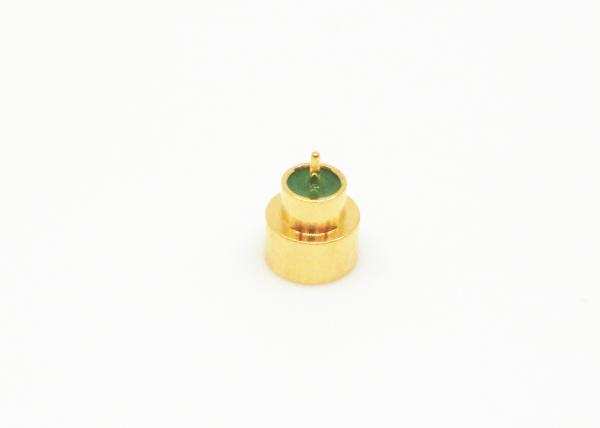

40GHz SMP Male RF Coaxial Limited Detent Connector Gold Plated

Name: 40GHz SMP Male RF Coaxial Limited Detent Connector Gold Plated
Brand: ELT (Elite)
Price: 1 USD

China 40GHz SMP Male RF Coaxial Limited Detent Connector Gold Plated wholesale

Brand Name : ELT (Elite)

Model Number : SMP(M)-JHD37

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 200pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Credit Card

Supply Ability : 300,000,000 pcs per year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Frequency Range : DC~40GHz

Impedance : 50Ω

Glass : 7052 7070

Hermecity : <1.01325 X 10E-08 std.cc/s

Insulation Resistance : ≥2000MΩ

Medium Pressure : 500VRMS*

Rated Withstand Voltage : 170VRMS*

VSWR : ≤1.3

Contact Now

SMP Male Limited Detent Hermetically Sealed Connector Solder Attachment Pin Terminal

SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Insulation Resistance	≥2000MΩ
Dielectrics Voltage-resistance	500VRMS*
Center Resistance	Outer conductor	≤4mΩ
	Center conductor	≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

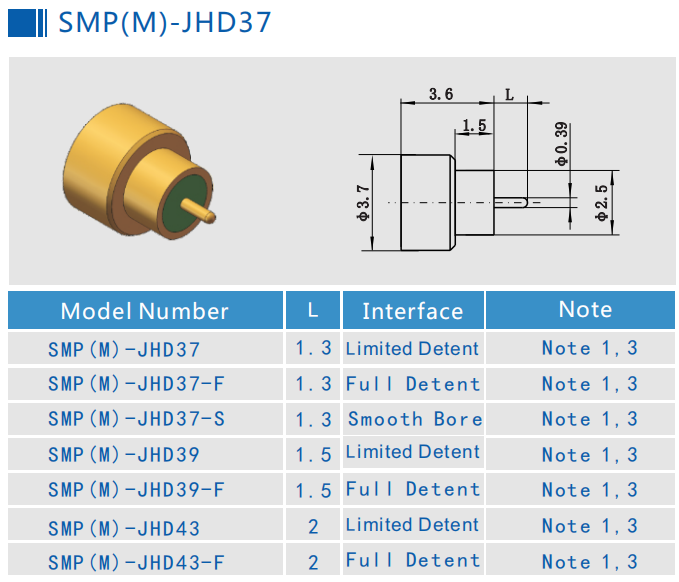

Detailed Drawing

40GHz SMP Male RF Coaxial Limited Detent Connector Gold Plated

NOTE:

We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.

Features and Benefits

Gold plated

Sub-miniature

DC to 40 GHz

Compact size

Push-on or snap coupling

Full detent, Limited detent and Smooth bore

PCB & cable mount connector

Male and Female, Straight and Right Angle choice

Cable mount versions for both flexible and semi-rigid cable Materials

Normal type and hermetic, Flange mount & Thread-In Mount choice

Applications
- Military
- Antennas
- Broadband
- Aerospace

- Broadband

- Telecommunications

- Instrumentation

- Instrumentation
- Phased array antennas

- Board-to-board interconnect
