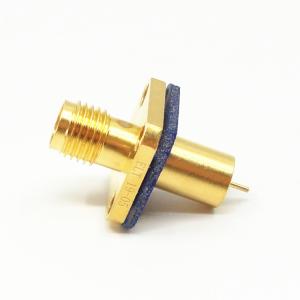

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount

Brand Name : ELT (Elite)

Model Number : SMA-KFD911

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Gender : Female

Impedance : 50Ω

Frequency : DC~18GHz

Durability : 500 Cycles

Insulation Resistance : ≥5000MΩ

VSWR : ≤1.3

Insulating Medium : Glass Insulator Seal

Contact Now

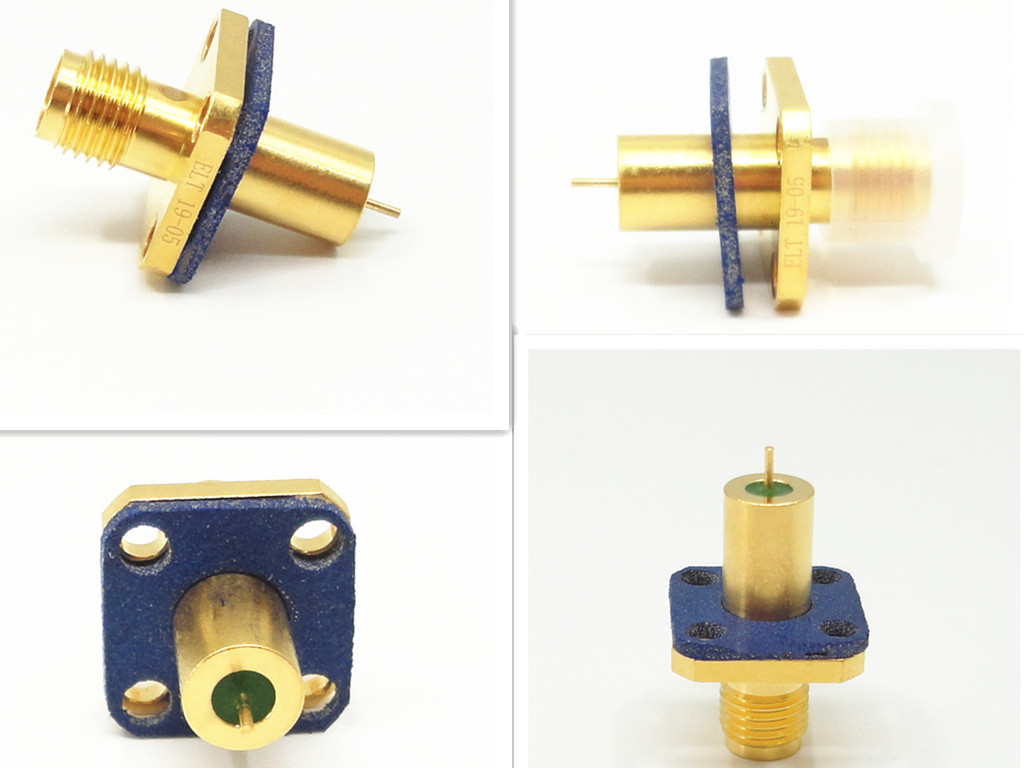

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount​

SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics.

SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Electronic and Material Characterials:

Electronic and Material Characterials
Impedance 50Ohm
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000VRMS (Maximum sea-level)

VSWR

 Straight ≤1.3
Right Angle ≤1.35
Insulation Resistance ≥5000MΩ
Center conductor Male Brass, Gold-plated
Female Beryllium bronze, Gold plated
Shell and other metal parts Brass , Stainless steel, Gold-plated
Contact Resistance Inner conductor ≤3.0MΩ
Outer conductor ≤2.0MΩ
Elastomer Beryllium bronze ,Nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79-1.13 N.m
Durablity 500(Cysles)

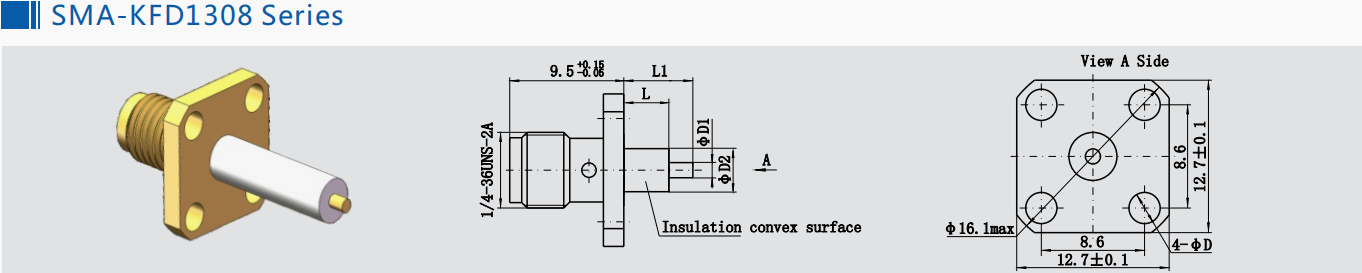

Outline Drawing:

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount

Related SMA RF Connector(mm):

1.

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount

Model Number L L1 Description
SMA-KFD553 1.5 4 SMA Female 4-hole flange mount rf connecor
SMA-KFD666 5.4 6.9
SMA-KFD850 6 8.5

2.

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount

Model Number L L1 D D1 D2 Description
SMA-KFD1308 11.7 13.7 2.6 1.3 4.1 SMA female 4-hole flange rf connector
SMA-KFD1318 7 17 2.6 1.3 4.1
SMA-KFD1367 5 11 2.6 1.3 4.1
SMA-KFD1393 8.4 9.4 2.6 1.3 4.1
SMA(S)-KFD1414 23.9 27 2.6 1.3 4.1 Waterproof SMA female 4-hole flange mount rf connector

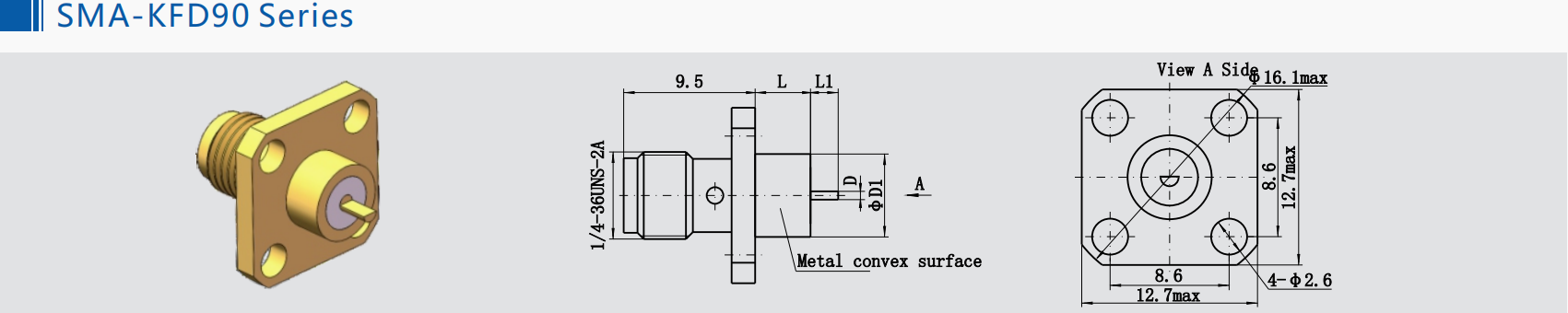

3.

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount

Model Number L L1 D D1 Description
SMA-KFD90 3.2 2.5
0.65 flat
 6 SMA female 4-hole flange rf connector
SMA-KFD126 4 2.5
0.65 flat
 6
SMA-KFD129 4 2
0.65 flat
 6
SMA-KFD870 3 5
0.65 flat
 6

Application:
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications

*Board-to-board interconnect


NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
