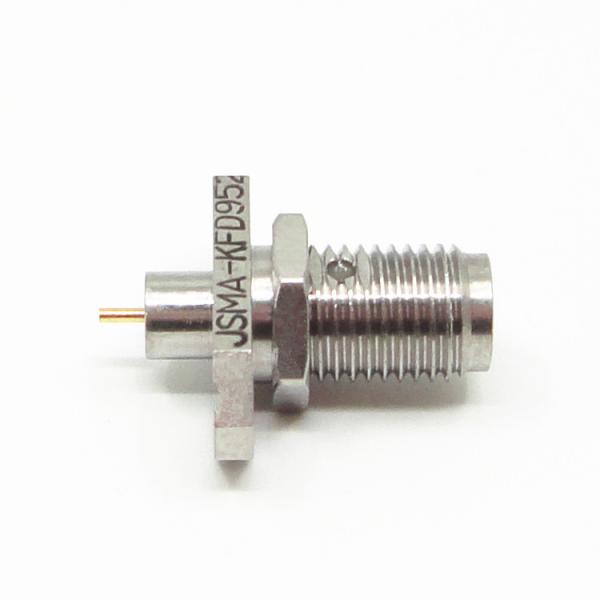

Passivated SUS SMA RF Connector Straight 2 Holes Flange Mount Female Connector

Name: Passivated SUS SMA RF Connector Straight 2 Holes Flange Mount Female Connector
Brand: ELT (Elite)
Price: 1 USD

China Passivated SUS SMA RF Connector Straight 2 Holes Flange Mount Female Connector wholesale

Brand Name : ELT (Elite)

Model Number : SMA-KFD952G

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Plating : Passivated

Impedance : 50Ω

Frequency : DC~18GHz

Durability : 500 Cycles

Material : Brass

VSWR : ≤1.3

Sealing Ring : Silicone Rubber

Contact Now

50Ω Passivated Stainless Steel SMA RF Connector DC 18GHz Frequency

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

4.SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.

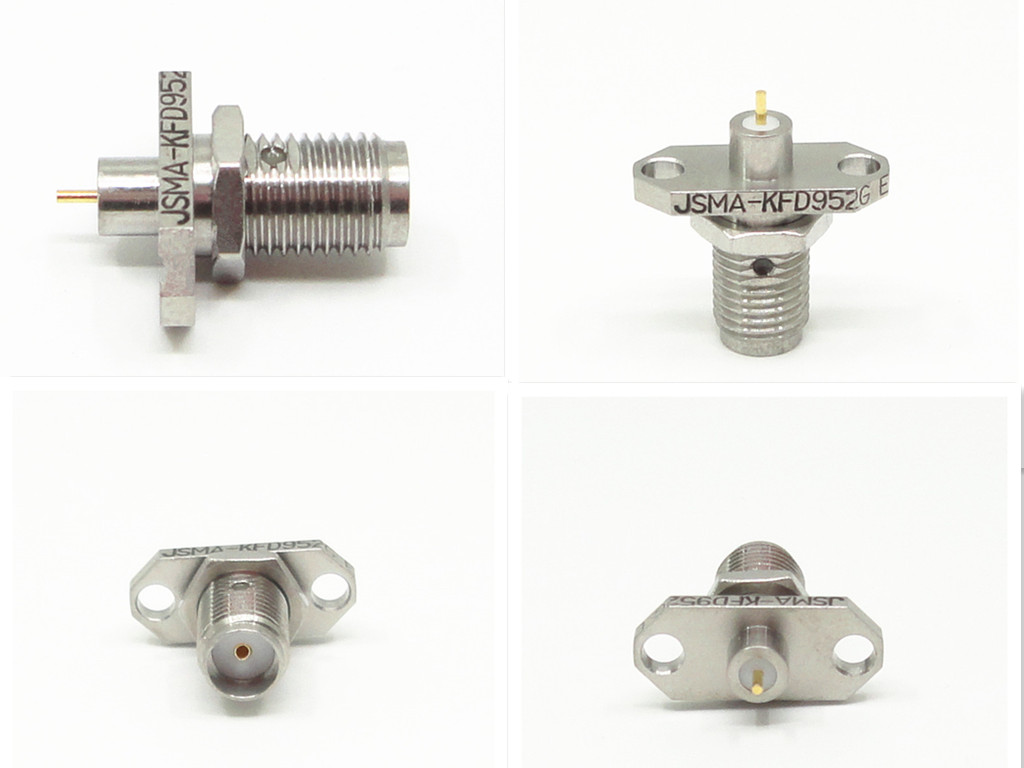

Passivated SUS SMA RF Connector Straight 2 Holes Flange Mount Female Connector

Specifiacation:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~18GHz
Rated Voltage		335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		1000VRMS (Maximum sea-level)
VSWR	Straight	≤1.3
	Right Angle	≤1.35
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass, Gold-plated
	Female	Beryllium bronze, Gold plated
Shell and other metal parts		Brass , Stainless steel, Gold-plated
Contact Resistance	Inner conductor	≤3.0MΩ
	Outer conductor	≤2.0MΩ
Elastomer		Beryllium bronze ,Nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79-1.13 N.m
Durablity		500(Cysles)

Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar microwave

Product Cataloge:

RF Adapter

SMA RF Connector

SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Interface Dimensions:

Similar Products:

1.Hermetically sealed Female SMA RF Conectors

Model No.	Note
SMA(M)-KFD	Hermetic

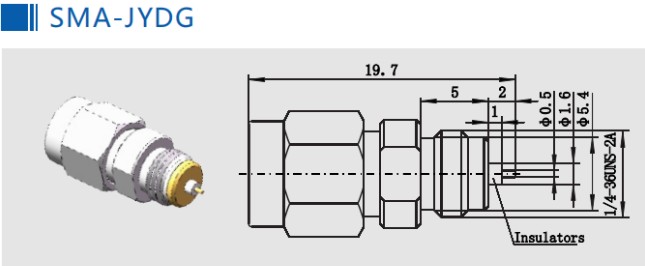

2.SMA Bulkhead Threaded Mount Male RF Connectors

Model No.	Note
SMA-JYDG	Stainless Steel housing

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
