50Ohm Gold Plated 4 Holes Flange SMA Receptacle Connector
SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Electrical Specification :
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
Mechanical Specification:
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated |
| Elastic Contact | Beryllium bronze Nickel plated |
| Shell and other Metal Parts | Brass Nickel plated |
| Stainless Passivation |
| Crimping Sleeve | Brass Nickel plated |
| Tightening torque of connection | 0.79－1.13N .m |
| Durability | 500 cycles |
| Sealing Ring | Silicone Rubber |
| Insulators | PTFE |
Advantages:
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 20 years
√ Have long and Rich cooperation experience with national project components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10 million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
Features:
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
3. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 holes panel configurations
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz)
More Pictures of

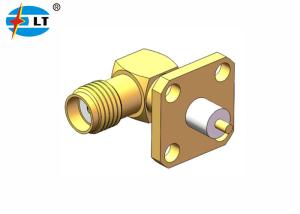

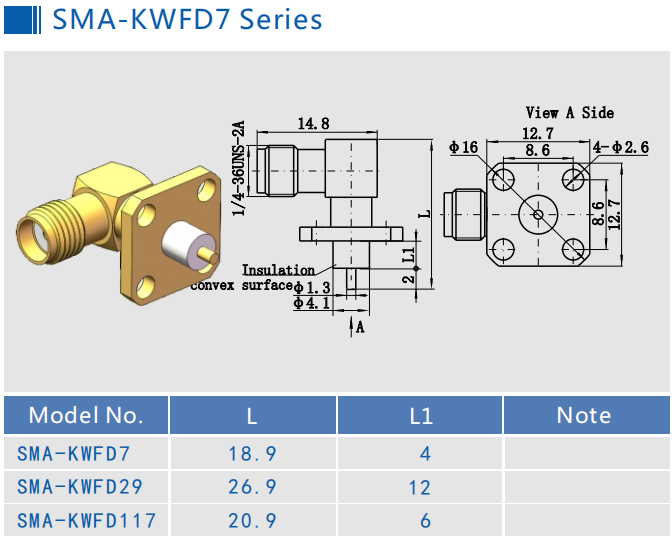

50Ohm Gold Plated 4 Holes Flange SMA Receptacle Connector:
