Gold Plated 50Ohm Female Bulkhead SMA RF Connector PTFE Insulator

Product Categories

Xi'an Elite Electronic Industry Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Gold Plated 50Ohm Female Bulkhead SMA RF Connector PTFE Insulator

Name: Gold Plated 50Ohm Female Bulkhead SMA RF Connector PTFE Insulator
Brand: ELT (Elite)
Price: 1 USD

China Gold Plated 50Ohm Female Bulkhead SMA RF Connector PTFE Insulator wholesale

Brand Name : ELT (Elite)

Model Number : SMA-KYD26

Certification : CE ROHS ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000000 Pieces Per Month

Delivery Time : Within in 3 weeks

Packaging Details : Standard Export Carton

Product name : SMA RF Coaxial Conector

Life Span : 500 Cycles

Gender : Female/Socket

Body Type : Straight

Material : Brass

Mount Method : Bulkhead Mount

Plating : Gold Plating

Imdepence : 50Ohm

Certificate : ISO-9001-2015,CE Rohs

Contact Now

Gold Plated 50Ohm Female Bulkhead SMA RF Connector

SMA RF Connector Introduction

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.

3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz.

4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.

Features and Benefits

Wide variety of orientations and PCB terminations
Frequency range up to 18GHz Sub-miniature coaxial connectors
Using a threaded interface
Available in passivation or gold plating
Brass and stainless steel material options
Available in straight or right angle versions
With bulkhead, 2 holes panel, 4 holes panel or mountless options.
Broad range with male, female and adapters variants.
RoHS compliant

Specification

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~18GHz
Rated Voltage		335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		1000 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass gold plated
	Female	Beryllium copper gold plated
Shell and other metal parts		Brass gold plated
Cable sheath		Brass nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

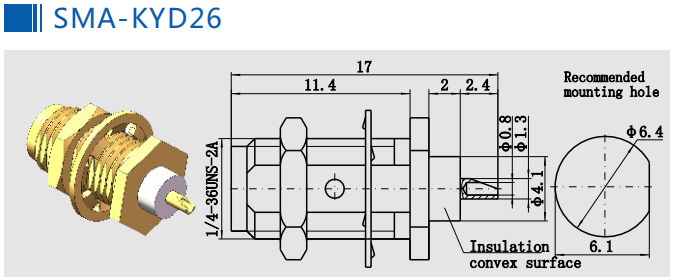

Detailed Drawing of Gold Plated 50Ohm Female Bulkhead SMA RF Connector:

Gold Plated 50Ohm Female Bulkhead SMA RF Connector PTFE Insulator

Model No.	Description	Note
SMA-KYD26	Female Bulkhead SMA RF Connector

Applications

Antennas
Board-to-board interconnect
Telecommunications
Instrumentation

Product Cataloge:

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

N Type RF Connector

TNC RF Connector

MCX/MMCX RF Connector

BNC RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
