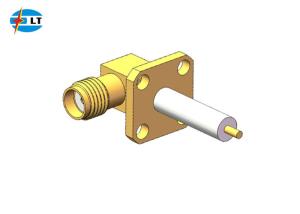

50Ohm Female Socket 4 Holes Flange Right Angle SMA RF Adapter

Name: 50Ohm Female Socket 4 Holes Flange Right Angle SMA RF Adapter
Brand: ELT (Elite)
Price: 1 USD

Brand Name : ELT (Elite)

Model Number : RF Connector

Certification : CE ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs per week

Delivery Time : within 3 weeks

Packaging Details : Standard Export Carton

Product name : RF Connector

Plating : Gold Plated

Impedance : 50Ω

Certificate : CE ROHS

Dielectric : PTFE

Model : SMA-KWFD

Type : RF Connector

Style : Right Angle

Material : Brass

Contact Now

50Ohm Female Socket 4 Holes Flange Right Angle SMA Connector

TYPE SMA is one kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

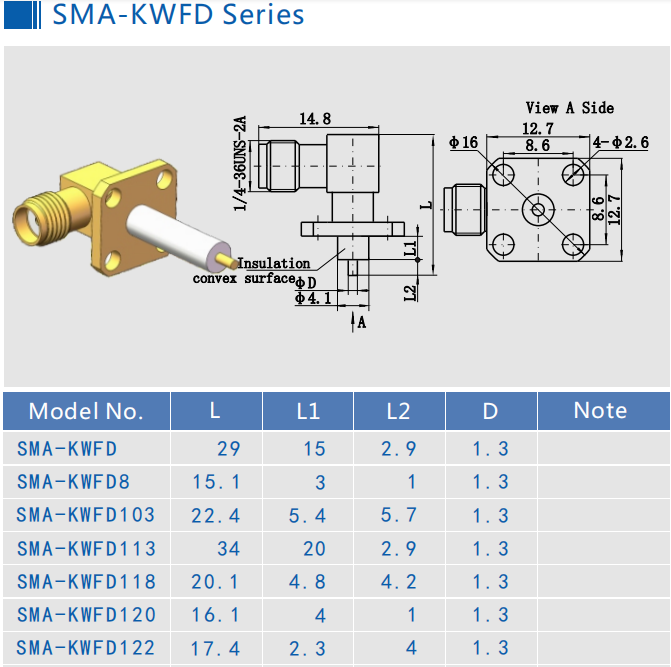

Detailed Drawing

50Ohm Female Socket 4 Holes Flange Right Angle SMA RF Adapter

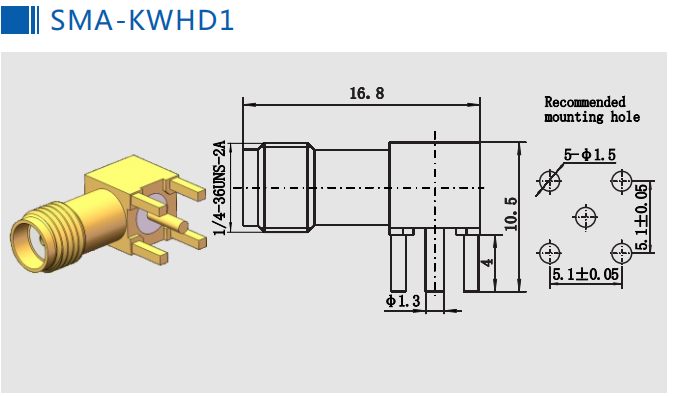

There also have other SMA RF Connector:

50Ohm Female Socket 4 Holes Flange Right Angle SMA RF Adapter

Application:

- Wireless
- Antennas

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Product Cataloge:

RF Adapter

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
