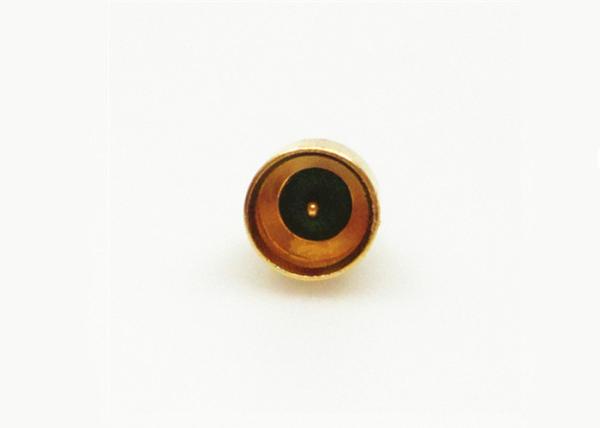

Pin SMP Male Limited Detent Hermetically Sealed Connector

Name: Pin SMP Male Limited Detent Hermetically Sealed Connector
Brand: ELT (Elite)
Price: 1 USD

China Pin SMP Male Limited Detent Hermetically Sealed Connector wholesale

Brand Name : ELT (Elite)

Model Number : SMP(M)-JHD94

Certification : ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000000 Pieces Per Month

Delivery Time : Within 5-7 workdays(for stocks)

Packaging Details : Standard Export Carton

Product name : SMP RF Coaxial Conector

Plating : Gold Plated

Impedance : 50Ω

Certificate : ISO-9001-2015

Durability : 500 Cycles

Gender : Plug

Body Style : Straight

Contact Now

Custom Pin SMP Male Limited Detent Hermetically Sealed Connector

SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.

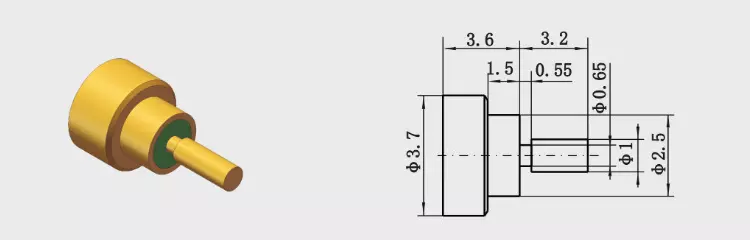

Detailed Drawing of Custom Pin SMP Male Limited Detent Hermetically Sealed Connector :

Pin SMP Male Limited Detent Hermetically Sealed Connector

Model Number	Description
SMP(M)-JHD1	SMP Male Limited Detent Hermetically Sealed Connector

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS
Dielectrics Voltage-resistance	500VRMS
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤4mΩ
Contact Resistance	Center conductor	≤26mΩ
VSWR		DC~18GHz	18~26.5GHz	26.5~40GHz
	Straight Connector	≤1.25	≤1.3	≤1.5
	Angle Connector	≤1.3
	Adapter	≤1.2	≤1.3	≤1.5
	Other	≤1.3

More Detailed:

Features and Benefits

DC to 40 GHz

Sub-miniature

Gold plated

Compact size

Male& Female, Straight & Right Angle choice

Push-on or snap coupling

PCB & cable mount connectors

Full detent, Limited detent and Smooth bore

Normal type and hermetic, Flange mount & Thread-In Mount choice

Cable mount versions for both flexible and semi-rigid cable Materials

Applications

- Antennas
- Broadband

- Instrumentation

- Aerospace
- Instrumentation

- Broadband
- Board-to-board interconnect
- Phased array antennas

Product Cataloge:

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

N Type RF Connector

TNC RF Connector

MCX/MMCX RF Connector

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
