Waterproof Gold Plated 18GHz SMA RF Connector

Name: Waterproof Gold Plated 18GHz SMA RF Connector
Brand: ELT (Elite)
Price: 1 USD

China Waterproof Gold Plated 18GHz SMA RF Connector wholesale

Brand Name : ELT (Elite)

Model Number : SMA(M)-KFD14

Certification : CE ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,000 Pieces Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : SMA RF Connector

Plating : Gold Plated

Impedance : 50Ω

Frequency range : DC~18GHz

Durability : 500 Cycles

Application : RF, Satcom /antenna/Audio

Contacts : Beryllium Bronze

Certificate : ROHS, ISO-9001-2015

Torque : 0.79 ~ 1.13 N.m

Contact Now

Waterproof Hermetically Sealed Gold Plated SMA Connector

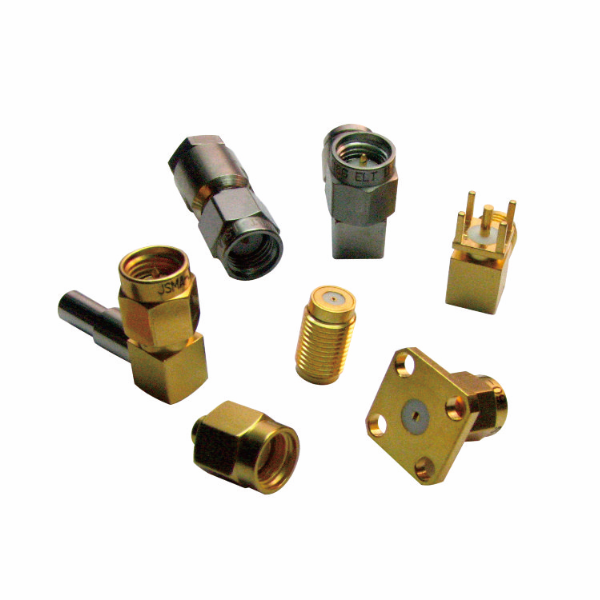

High Performance SMA RF Connectors:

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

Please click and download attached Catalog SMA Adapter.pdf for more items. Customized sizes are welcomed.

Key Features:

1.Frequency range up to 18GHz Sub-miniature coaxial connectors

2.Using a threaded interface
3.Available in passivation or gold plating
4.Brass and stainless steel material options
5.Wide variety of orientations and PCB terminations
6.Available in straight or right angle versions
7.With bulkhead, 2 holes panel, 4 holes panel or mountless options.
8.Broad range with male, female and adapters variants.
9.RoHS compliant

Waterproof Gold Plated 18GHz SMA RF Connector

Our Advantange:

20 years experience on RF & Microwave Components
Qualified components supplier of China
Rich cooperation experience with national high tech projects
High quality and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed

Electrical Characteristics:

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

More Detail of

Waterproof Hermetically Sealed Gold Plated SMA Connector:

(Unit:mm)

Waterproof Gold Plated 18GHz SMA RF Connector

Applicable Standard:

MIL-C-39012
IEC 60169-15

Applications:

Microwave Systems Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
