SMK Series Satcom Passivated 2.92mm RF Connector

Brand Name : ELT

Model Number : K-KFD23

Certification : CE,ROHS

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Type : 2.92mm,K type,SMK

Keywords : 2 Holes Flange Panel Connectors

Item : Millimeter Wave Connectors

Plating : Gold plated

Application : RF/Satcom

Insulator : PTFE

Impedence : 50Ohm

Gender : Female

Contact Now

RF Coaxial Connector SMK Series Female Straight 2 hole flange 2.92mm

K type is also called 2.92 type connector, this series of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface.With small size, light weight, high frequency of use, reliable connection, etc.

Features:

It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
Superior electrical performance up to 40 GHz
It has the advantages of small volume, light weight, high use frequency, reliable connect.
Great for applications that require high frequency transmission
Connector mating interface per MIL-STD-348
Female contacts have unique three-slot construction
An air dielectric with a loss-loss plastic center conductor support.
It has the high use frequency, reliable connect.

SMK Series Satcom Passivated 2.92mm RF Connector

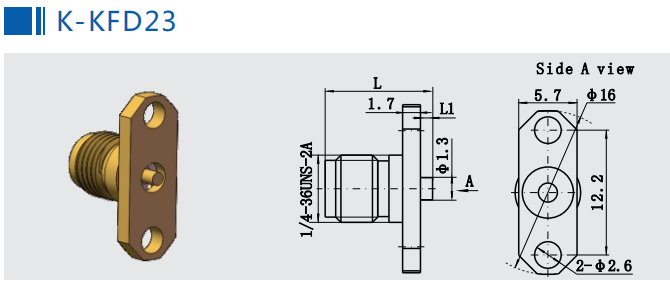

Model Number	L	L1	Description
K-KFD23	10.5 max	0.7	2.92mm K female 2 holes flange rf connector
K-KFD24	10.2 max	0.4	2.92mm K female 2 holes flange rf connector

Specification:

Impedance	50 Ω
Frequency Range	DC - 40 GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Other 2.92mm Male Female RF Connector

Part Number	Description
K-KFD21	2.92mm Type K Female RF Coaxial Connector
K-KFD87G	Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD42	2.92mm Type K Female RF Coaxial Connector
K-JFD61G	Stainless steel 2.92mm Type K Male RF Coaxial Connector

SMK Series Satcom Passivated 2.92mm RF Connector

Application:

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system

SMK Series Satcom Passivated 2.92mm RF Connector
