High Frequency MMW Connector DC-40GHz 50Ohm Female 2.92mm
K type (2.92mm, SMK) millimeter wave connector, also known as 2.92mm connector. It is one of the most popular instrument wave connectors with a frequency range up to 40GHz. They can be paired with SMA and 3.5mm connectors.K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.
Features of High Frequency MMW Connector DC-40GHz 50Ohm Female 2.92mm(mm):
- It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
- Superior electrical performance up to 40 GHz.
- It has the advantages of small volume, light weight, high use frequency, reliable connect.
- Great for applications that require high frequency transmission.
- Connector mating interface per MIL-STD-348.
- Female contacts have unique three-slot construction.
- An air dielectric with a loss-loss plastic center conductor support.
- It has the high use frequency, reliable connection.

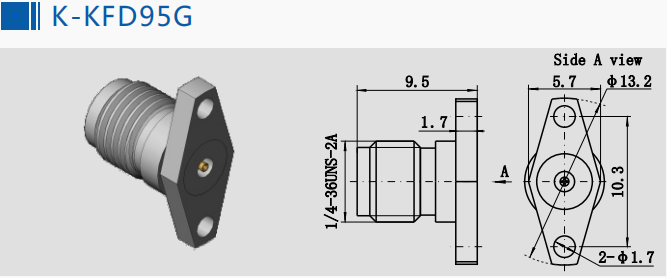

Outline Drawing of High Frequency MMW Connector DC-40GHz 50Ohm Female 2.92mm (mm):
| Model Number | Description |
| K-KFD95G | Stainless steel K 2.92mm female 2-holes rf connector |
Specification of High Frequency MMW Connector DC-40GHz 50Ohm Female 2.92mm(mm):
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 250VRMS* |
| Dielectrics Voltage-resistance | 750VRMS* |
| Insulation Resistance | ≥ 5000 MΩ |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ |
| VSWR | ≤1.05 + 0.005f |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI |
| Temperature | -55℃ ~ +125℃ |
Application of High Frequency MMW Connector DC-40GHz 50Ohm Female 2.92mm(mm):
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Satcom
* Telecommunications
* Navigation systems
* Satellite communication
Other 2.92mm Male Female RF Connector:
| Part Number | |
| K-KFD33 | 2.92mm Type K Female RF Coaxial Connector |
| K-KFD74G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD154 | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD9G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
