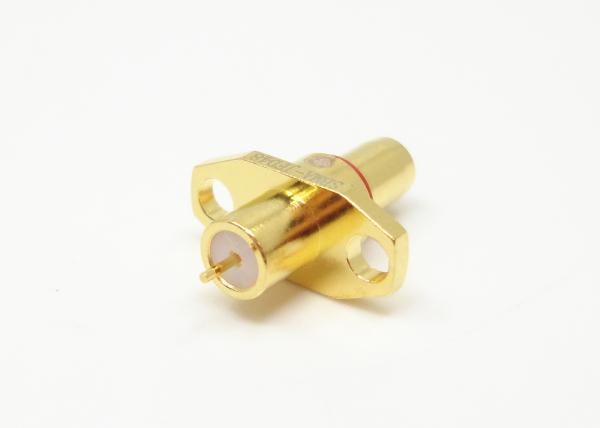

50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector

Brand Name : ELT (Elite)

Model Number : SBMA-JFD48

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Item : Mini BMA RF Conector

Plating : Gold Plated

Connector Gender : male

Impedance : 50Ω

Frequency : DC~18GHz

Lifetime : 500 Cycles

Body : Brass

Vswr : ≤1.3

Contact Now

50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector

SBMA series is a miniaturized product of the BMA series coaxial connectors, it's also blind-mate connectors, with the advantages of good bandwidth, small occupy space, can meet the requirements of microwave device miniaturization and modularization.

50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector

Specifiacation:

Electrical Characteristics
Impedance 50 Ohm
Frequency Range DC~28GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 675 VRMS (Maximum sea-level)
Insulation Resistance >=5000MOhm
Contact Resistance Outer conductor <=3mOhm
Center conductor <=6 mOhm
VSMR <=1.25
Insertion Loss ≤0.30dB

Application:

  1. Microwave Systems Telecommunications
  2. Civil & Military Aeronautics
  3. Military Equipment
  4. Space
  5. 5G Solutions
  6. Measurement Systems
  7. Mobile Telephone WiFi Antennas Systems

Other Products:

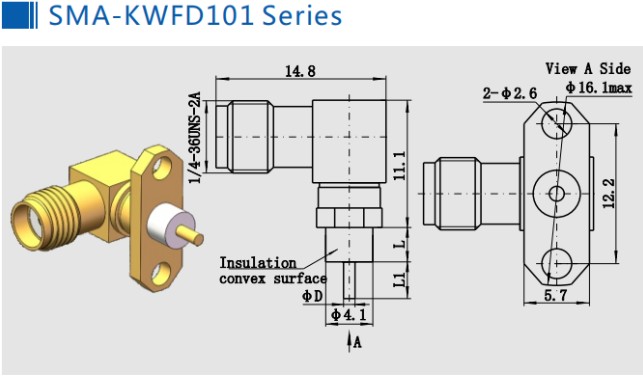

1.SMA 90-degree flange mount connector

50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector

Model No. L L1 D Note
SMA-KWFD101 3 3 1.3
SMA-KWFD101G 3 3 1.3 SS housing
SMA-KWFD115 4 2 0.6
SMA-KWFD131 15 3 1.3
SMA-KWFD147 4 4 1.3
SMA-KWFD169 3 0.6 0.4
SMA-KWFD234 3 3 1

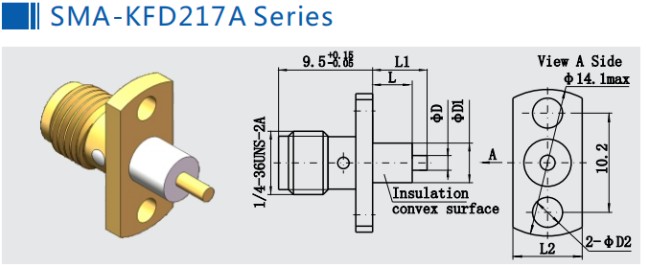

2.50Ohm Brass Female Jack Flange Mount SMA RF Connector

50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector

Model No. L L1 L2 D D1 D2 Note
SMA-KFD217A 4 7 6 1.3 4.1 2.2
SMA-KFD746 0 1.1 5.7 1.3 0 2.6
SMA-KFD1197 4 4.5 5.7 1 4.1 2.6
SMA-KFD1304 0 1 5.7 0.8 0 2.2
SMA-KFD1401 3.3 5 5.7 1.3 4.1 2.6

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
