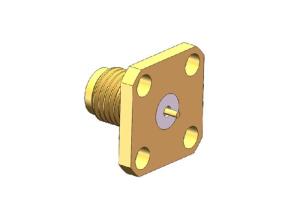

Microwave 335V 4 Hole Flange Mount SMA RF Connector

Name: Microwave 335V 4 Hole Flange Mount SMA RF Connector
Brand: ELT (Elite)
Price: 1 USD

Brand Name : ELT (Elite)

Model Number : SMA-KFD47

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Product name : SMA RF Conector

Mount Method : Flange Mounting

Vswr : ≤1.3

Working voltage : 335V r.m.s at sea level

Frequency range : DC to 18GHz

Body : Brass

Application : Microwave Applications

Contact Now

Microstrip KFD series 4 holes Flange Mount SMA RF Connector Female Connector

The specifications below are general specifications for all sma connectors. Specific specifications for VSWR, insertion loss, and RF leakage for each connector is available from the factory upon request.

1.SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
2.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.
4.SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz

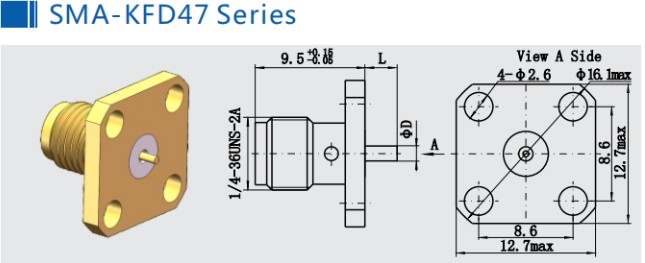

Outline Drawing:(mm)

Microwave 335V 4 Hole Flange Mount SMA RF Connector

Model No.	L	D
SMA-KFD47	1.6	0.9
SMA-KFD48	1.2	0.8
SMA-KFD48A	0.9	0.6
SMA-KFD78	1.5	0.7
SMA-KFD154	5	1
SMA-KFD177	0.8	0.6
SMA-KFD521G	1	0.5	Stainless Steel
SMA-KFD533	2	0.8
SMA-KFD564	1.2	0.6
SMA-KFD605	8	1.3

Features:

Sub-miniature coaxial connectors
Screw-on coupling
Light weight, compact and vibration proof design
Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
Broad range with male, female and adapters variants.
Frequency range up to 18 GHz
Intermateable with SMA2.9.
Excellent return loss

Specifiacation of SMA Rf Connectors:

Electrical Characteristics
Impedance	50Ω
Frequency Range	Connect with solf cable DC~12.4GHz
	Connect with semi-rigid cable DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics
Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Product Cataloge:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Applications

Base Stations
Antennas
Telecommunications
Instrumentation
5G Solutions
