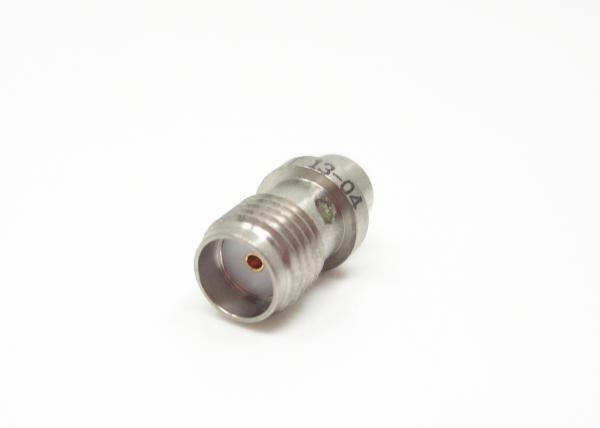

Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector

Name: Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector
Brand: ELT (Elite)
Price: 1 USD

China Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector wholesale

Brand Name : ELT (Elite)

Model Number : SMA-KYD119G

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Item : SMA RF Conector

Plating : Passivated

Gender : Female

Impedance : 50Ω

Frequency : DC~18GHz

Lifetime : 500 Cycles

Body : Brass

Application : audio/vedio/microwave

Contact Now

50 Ohm Stainless Steel Bulkhead Mount SMA Rf Connectors Jack

1.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

2.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.

3.SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.

Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector

Specifiacation of SMA Rf Connectors:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Key Features:

Sub-miniature coaxial connectors
Screw-on coupling
High RF Performance
passivated stainless steel
gold plated/nickle plated
Wide hermetically sealed range
Space qualified range of product
SMA extended frequency 20GHz

Product Cataloge:

RF Adapter

SMA RF Connector

SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Application:

Microwave Systems Telecommunications
Civil & Military Aeronautics
Military Equipment,
Space
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

Packaging Details:
* Standard Export Carton
* According to clients' requirements

Interface Dimensions:

Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector

Related Product

1.SMA Bulkhead Threaded Mount Male Rf Connectors

Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector

Model No.	Note
SMA-JYDG	Stainless Steel housing

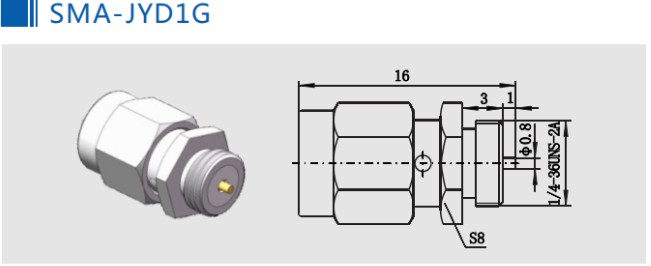

2.Male Bulkhead Theaded Mount SMA Rf Connectors

Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector

Model No.	Note
SMA-JYD1G	Stainless Steel housing

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
