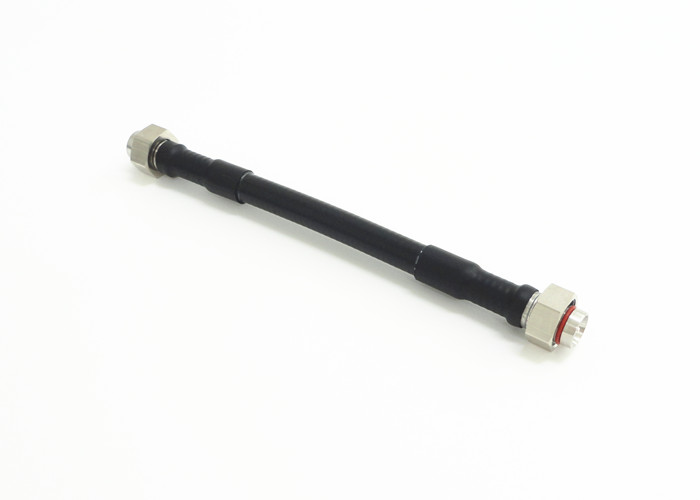

4.3-10 Male RF Coaxial Connector Straight Clamping Connectors with 1/2 Supersolf Cable
Xi'an Elite Electronic of RF cable assemblies features outstanding electrical performance, low loss and high frequency. The range includes flexible, semi-rigid, corrugated and hand-formable cable assemblies with a combination of RF cables and connectors optimized for each market or application. Custom RF cable assemblies are also available.
4.3-10 connectors offer the same, robust design as 7/16 connectors but are smaller and up to 40% lighter, allowing for much more dense, lighter weight applications. Separate electrical and mechanical components yield very stable PIM performance regardless of coupling torque, allowing for easier installation. Silver plated contacts and White Bronze plated bodies offer a high-degree of conductivity, corrosion resistance, and durability.
We can customize various type 4.3-10 cable assemblies as per customers' different requirement.
Product Specification:
Electrical Characteristics
| Impedance | 50Ohm |
| Frequency range | DC~6GHz |
| 3rd Order IM Product@2×20Watts | -163, typical -167 |
| Insertion Loss | ≤0.10dB |
| Seal | IP67 |
| Salt Spray | 96H |
| VSWR | 0 < f ≤1.0 GHz: 1.02 (40.1)
1.0 < f ≤ 2.7 GHz: 1.03 (36.6)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7)
3.7 < f ≤ 5.0 GHz: 1.08 (28.3)
5.0 < f ≤ 6.0 GHz: 1.25 (19.1) |
| Vibration Test Method | MIL-STD-202, Meth. 204, Cond. A |
| Dielectric Withstanding Voltage | 2500V rms |
| Insulation resistance | ≥10000MΩ |
Material & Mechanical Characteristics
| Center Conductor | Phosphor Bronze, Silver Plating |
| Spring Connector | Sleeve Beryllium Silver Plating |
| Insulators | PTFE |
| Body | Brass Ternary Alloy Plating |
| Other Metal Parts | Brass, Alloy Plating |
| Gasket | Silicone Rubber |
Product Features:
* The interface according to IEC 60169-4
* Good shielding performance
* Low VSWR;Low attenuation
* Low power consumption with high transmitting power
* With waterproof structures IEC 169, IP67
* Perform exceptionally well in multi-channel cellular systems where power levels approximate 100 watts per channel
* Low PIN and low VSWR for improved system performance
* Silver plated contacts and silver or white bronze plated bodies deliver high conductivity and corrosion resistance
Applications:
* Computer/LANs
* Base Station
* Automotive
* Basic facility
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Radio, TV aerial system
Industral:
-Aerospace
-Defense
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
