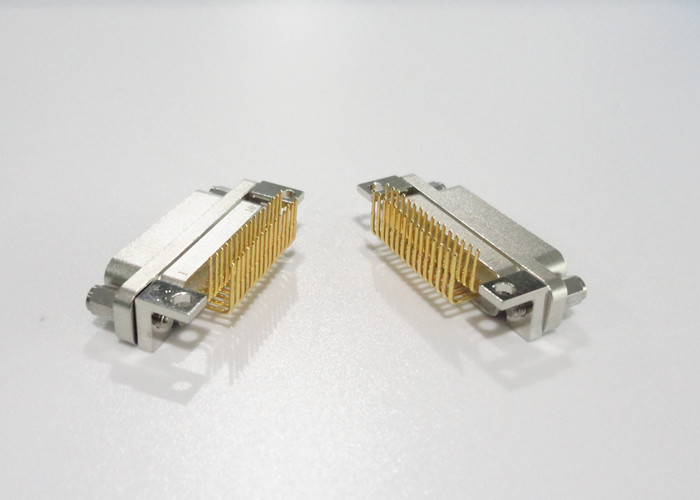

Right Angle Micro-D Rectangular J30J 31 Pin MDM Connector for PCB
The micro-D rectangular J30J product is equivalent to the American MDM series products, the outer shell is made of aluminum alloy and the contact space is 1.27mm, this J30J connector is apply to the wire core section area of 0.1-0.15mm squared. This product performance comply with GJB2446A ( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . With the features of small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance and so on, It is widely used in small space required electronic equipment and apparatus.
The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.
Contact Arrangements
(Face View of Pin insert) |
Specification:
| Current Rating | 3A |
| Voltage Rating | 300V |
| Insulation Resistance | ≥ 5000 MΩ |
| Durability | 500 cycles |
| Dielectric Withstand Voltage | 800 |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact | 735m/S² |

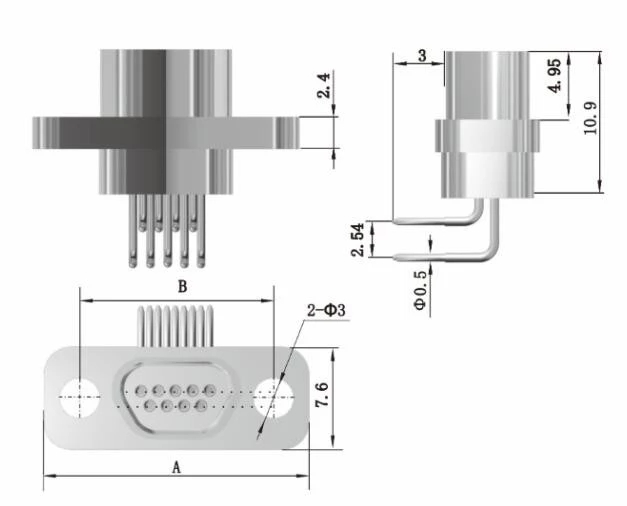

| Model No. | A | B |
| J30J-9ZKW-J | 19.6 | 14.35 |
| J30J-15ZKW-J | 23.5 | 18.2 |
| J30J-21ZKW-J | 27.4 | 22 |
| J30J-35ZKW-J | 29.8 | 24.5 |
| J30J-31ZKW-J | 33.6 | 28.3 |
| J30J-37ZKW-J | 37.4 | 32.2 |
Features:
* Standard:equivalent MIL-DTL-83513
* The series of products including 9,15,21,25,31,37cores
* The termination style is right angle contact for PCB, and the reseau is 1.27×2.54(row ×line)
* Twist pin
* The section area of suitable cable is 0.1~0.15 mm2
* The cable of section area for 0.07 mm2
* 1, 2, 3 ,4-raw options
* High density connection
* There have straight, right-angle models choice
* Low contact resistance, high current capability, high dielectric strength.
* Custom designed connectors and cable assemblies.
* Straight, right-angle models choice
* Space and weight saving.
Types:
- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series
Applications:
- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Research centres
- Military
- GPS
- UAV
- Communications
- Satcom
- Navigation systems
- Research centres
- Medical applications
- Surface Mount (SMT) Board to Cable
