Hermetic Seal Male SMPM RF Connector Coaxial SSMP Connector 50Ω Impendance with Chamfer Microstrip

Name: Hermetic Seal Male SMPM RF Connector Coaxial SSMP Connector 50Ω Impendance with Chamfer Microstrip
Brand: ELT (Elite)
Price: 1 USD

China Hermetic Seal Male SMPM RF Connector Coaxial SSMP Connector 50Ω Impendance with Chamfer Microstrip wholesale

Brand Name : ELT (Elite)

Model Number : SSMP(M)-JHD

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 200pcs

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1,000,000pcs per month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Engagement depth : 1.4

Gender : Male

Material : Brass, Gold plating

Plating : Gold Plated

Impedance : 50Ω

Frequency Range : DC~50GHz

Diameter of chamfere : φ2.2

Interface : Full Detent

Contact Now

Hermetic Seal Male SMPM RF Connector Coaxial SSMP Connector 50Ω Impendance with Chamfer Microstrip

SMPM is a micro push in RF coaxial connector, which is characterized by small size (compared with Mini SMP), light weight, wide working bandwidth, etc. It is applicable to the coupling use of board to board connectors in the case of modular intensive installation. The plug has two interface forms, namely, full pawl and no threaded hole.

The SMPM interface is a micro-miniature interface with a frequency range of DC to 50 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.
The full detent and smooth bore mating systems provide respective levels of engagement/disengagement forces. This family of interconnects addresses small package design needs; it can be utilized as a highly shielded interconnect for high data rate applications or in a board-to-board system using a floating bullet adapter. This floating bullet provides a link between mated pairs compensating for both radial and axial misalignment.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		≤5mΩ
	Center conductor		≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Kovar, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Kovar Gold plated
Insulators	Glass sintering
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

Features and Benefits

Small package size

Push-on and snap-on mating styles for quick installation

Designs available for board-to-board and cable-to-board configurations

Hermetic Seal Male SMPM RF Connector Coaxial SSMP Connector 50Ω Impendance with Chamfer Microstrip

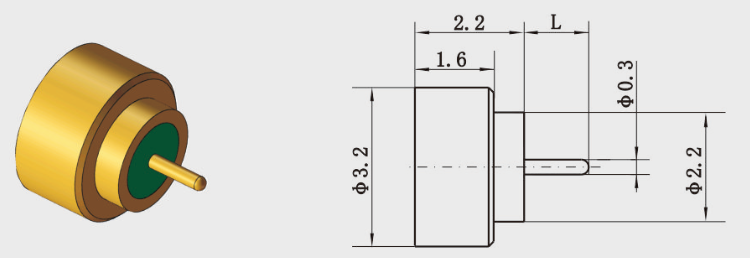

Model No.	L(mm)	Interface Type	Note
SMP(M)-JHD	1.3	Full detent, hermatically sealed	Inteface deepth 1.4mm
SMP(M)-JHD-S		smooth bore	Inteface deepth 1.4mm
SMP(M)-JHD3		Full detent, hermatically sealed	Inteface deepth 1.4mm
SMP(M)-JHD50		Full detent, hermatically sealed	Inteface deepth 1.4mm
SMP(M)-JHD41-S		smooth bore	Inteface deepth 1.4mm
SMP(M)-JHD57-S		smooth bore	Inteface deepth 1.4mm

Application:

Antennas

Broadband

Wireless

Instrumentation

Medical

Quantum Computing

Product Cataloge:

RF Adapter

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
